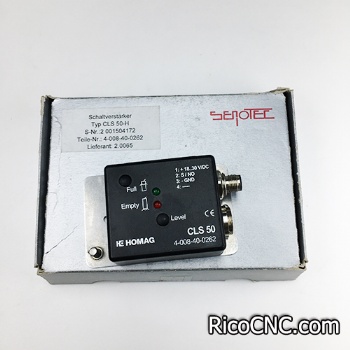

Homag 4008400262 4-008-40-0262 Senotec CLS50 Switching Amplifier

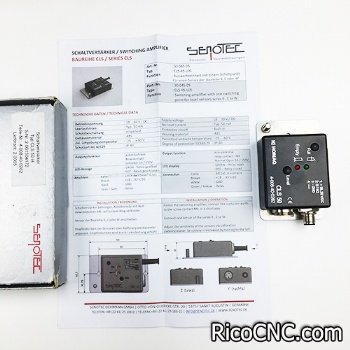

This is SenoTec CLS50 switching amplifier. It can replace the SenoTec CLS 45-L05 switching amplifier. It can be used for a Homag edge banding machine. The Homag part number is 4-008-40-0262 or 4008400262
This is SenoTec CLS series switching amplifier. It offers a high degree of operational safety and ease of use for controlling a level.
Technical Data of CLS 45-L05 switching amplifier:
Supply voltage | 18 .. 30 V / DC |
No-load current | Typ. 50 mA |
Protective circuit | Built-in |
Housing material | ABS |
Permitted ambient temperature | -25 … 60°C |
Degree of protection IEC60529 | IP 40 |
Output function | non-potential relay contact - NO Normal Open 1A / 150V |
LED-display | GREEN – Relay open : RED – Relay closed |
Connection: Cable : LIYCY 4x025mm² Length : 0,5 m Brown : +18 … 30 V/DC White : GND Green / Yellow : Relay |
Installation/operation of Homag 4008400262 switching amplifier:
Fasten the switching amplifier, connect the container earth
to the screw contact M6 in a short way
Connect one sensor of the series R, S, C, or W
Adjust the sensitivity of the sensors via a calibration
potentiometer. Sensitivity is increased by turning to the left
