4-008-32-0895 4008320895 Limit Switch XCMD2102C12 for Holzma HPP / HPL / HKL

4-008-32-0895 4008320895 Limit Switch XCMD2102C12 for Holzma HPP / HPL / HKL

• 4-008-32-0895 limit switch
• 4008320895 limit switches
• XCMD2102C12
• Limit Switch for Holzma HPP / HPL / HKL
• SKU 34-483-20895
• SWITCH LIMIT PB W/STRAIGHT ROLLER PLUNGER W/SWIVEL PLUG
• Homag roller tappet release XCMD2102C12
• Schneider Electric ZCMD21C12
INQUIRY

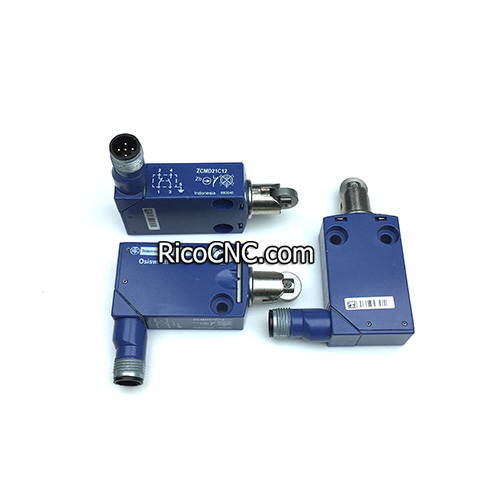

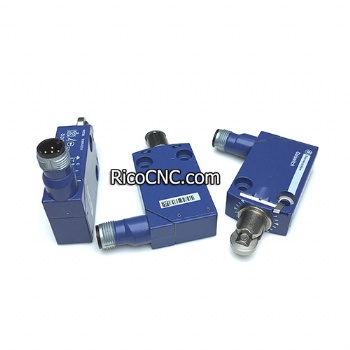

4-008-32-0895 limit switch.jpg

4-008-32-0895 4008320895 Limit switch XCMD2102C12 for Holzma HPP / HPL / HKL

This is a limit switch for Holzma HPP / HPL / HKL, part number is 4-008-32-0895 or 4008320895. Mounted with screws 4-001-09-0217 or 4-001-09-0218.

This product is a limit switches that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, snap action contacts with positive opening operation and provides switch actuation by 30° cam.

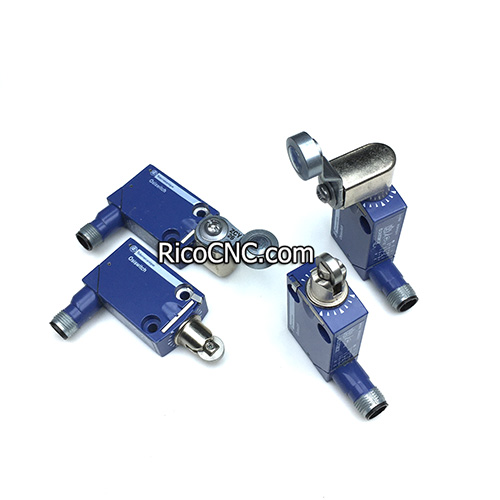

4008320895 limit switches.jpg

It has a spring return metal roller lever and supports lateral approach in 2 directions. The movement of limit switch operating head is rotary. It is furnished with 5-pin M12 male connector for electrical connection. It has a rated operational current of 0.22A at 50V AC, 3A at 50V AC and a conventional enclosed thermal current of 4A. Its mechanical durability is about 10 million operating cycles and electrical durability is 5 million operating cycles.

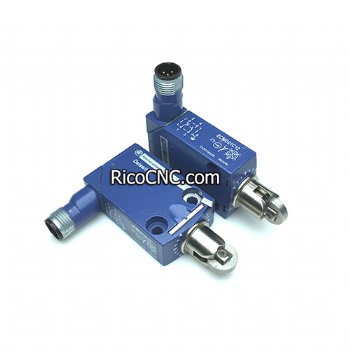

Limit Switch for Holzma HPP : HPL : HKL.jpg

4-008-32-0895 limit switch main specification:

range of product	Telemecanique Limit switches XC Standard
series name	Standard format
product or component type	Limit switch
device short name	XCMD
sensor design	Miniature
body type	Plug-in body
head type	Plunger head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the body
movement of operating head	Linear
type of operator	Spring return roller plunger metal
type of approach	Lateral approach, 2 directions
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Snap action

XCMD2102C12 ZCMD21C12 COMPLEMENTARY:

switch actuation	By 30° cam
electrical connection	Male connector M12, 5 pins
contacts insulation form	Zb
positive opening	With
positive opening minimum force	35 N
minimum force for tripping	7 N
maximum actuation speed	0.5 m/s
[Ie] rated operational current	0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
[Ie] rated operational current	3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	4 A
[Ui] rated insulation voltage	60 V (pollution degree 3) conforming to IEC 60947-5-1
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	0.8 kV conforming to IEC 60664
[Uimp] rated impulse withstand voltage	0.8 kV conforming to IEC 60947-1
short-circuit protection	4 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
electrical durability	5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	10000000 cycles
width	30 mm
Height	50 mm
Depth	16 mm
Net weight	0.09 kg
