4-035-01-0234 4035010234 Pneumatic Mini ISO 6432 Cylinders AVENTICS – 0822334503 for KFL 526

  • • 4-035-01-0234 Cylinder
  • • 4035010234
  • • AVENTICS 0822334503
  • • Mini cylinder Series MNI
  • • DIN ISO 6432 D= 25 HUB= 50 G1/8
  • • Pneumatic Piston Rod Cylinder
  • • AVENTICS MINI ISO CYLINDER 0822334503
  • • Cylinder for Homag KFL 526
  • INQUIRY

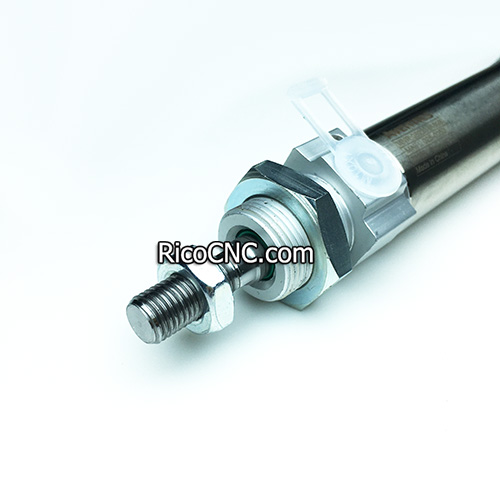

4-035-01-0234 Cylinder.jpg

4-035-01-0234 4035010234 Pneumatic Mini ISO 6432 Cylinders AVENTICS – 0822334503 for KFL 526



This AVENTICS Pneumatic Piston Rod Cylinder is 25mm Bore, 50mm Stroke, MNI Series, Double Acting, usually used for Homag KFL 526, Homag part number is 4-035-01-0234 or 4035010234.

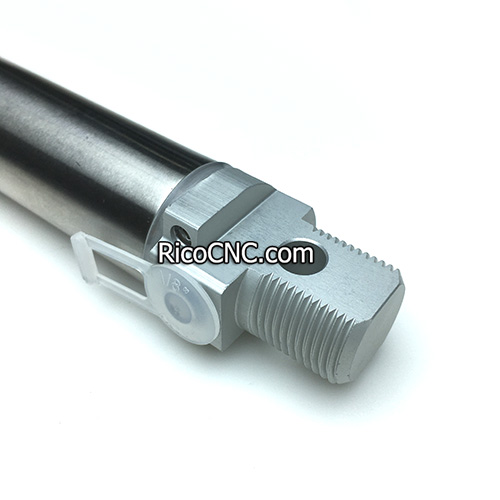

4035010234 .jpg

4-035-01-0234 Cylinder Features

• Double acting

• Magnetic piston

• Pneumatic cushioning

• Integrated rear eye

• External piston rod thread

AVENTICS 0822334503.jpg

AVENTICS MINI ISO CYLINDER 0822334503.jpg

AVENTICS – 0822334503 – Mini cylinder Specification:

Functional principle double-acting

Cushioning (adjustable) pneumatically

Piston diameter 25 mm

Piston rod thread M10x1.25

Stroke 50 mm

Compressed air connection G 1/8 Internal Thread

Working Pressure Min./Max. 1 to 10 bar

Ambient Temperature min./max. -25 to 80 °C

DIN ISO 6432 D= 25 HUB= 50 G1:8 .jpg

Mini cylinder Series MNI.jpg

RicoCNC also can supply other models such as:

4035010011 Aventics 0822122004 Air Cylinder

4035010016 Aventics 0822350003 Air Cylinder

4035010054 Air Cylinder 0822121009

4035010234 Air Cylinder 0822334503

Cylinder for Homag KFL 526.jpg

Welcome to contact us if any inquires!
