4-035-01-0016 4035010016 Pneumatic Cylinder ISO 15552 0822350003 - Aventics 32 x 80 Profile Cylinder



This 0822350003 Aventics cylinder is ISO Profile-Style Cylinder, 32mm Bore x 80mm Stroke, Metric Threads, Cushions, Magnet Piston, Single Rod, Male Thread, PUR Seals, PUR Fixed Scraper, Basic. Usually used for Homag / Weeke / Brandt, Homag part number is 4-035-01-0016 or 4035010016.

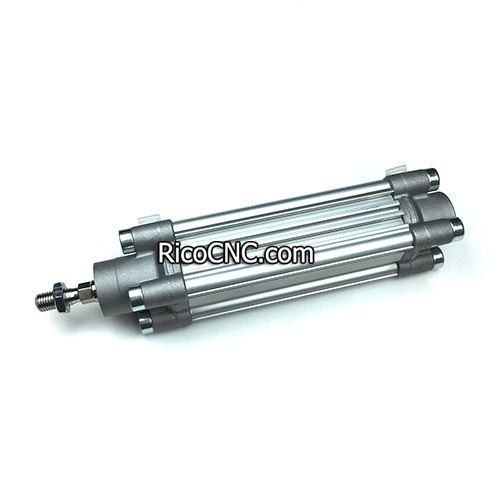

Aventics 32 x 80 Profile Cylinder.jpg

Specification:

Cushioning

pneumatically

Pneumatic port

G 1/8

Stroke

80 mm

Piston diameter

32 mm

Piston rod thread

25, M10x1

Ambient Temperature Max

80DegC

Ambient Temperature Min

-20DegC

Acting principle

Double Acting

Working Pressure Max

10 Bar

Working Pressure Min

1.5 Bar

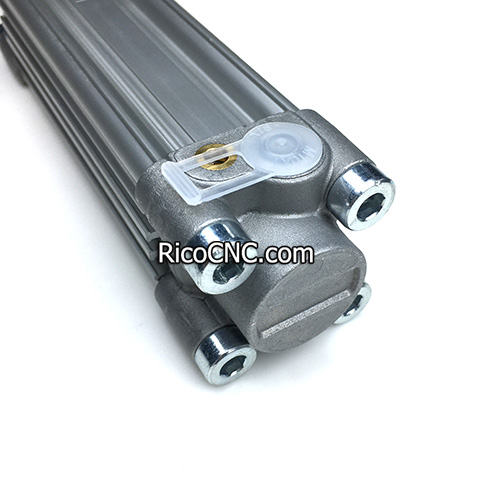

4035010016 CYLINDER.jpg

Profile cylinder.jpg

RicoCNC also can supply other models such as:

4035010011 Aventics 0822122004 Air Cylinder

4035010016 Aventics 0822350003 Air Cylinder

4035010054 Air Cylinder 0822121009

4035010234 Air Cylinder 0822334503

cylinder for Homag.jpg

Welcome to contact us if any inquires!

ISO 15552 PRA D=32 stroke=80 G1:8.jpg
