4-035-01-0054 4035010054 Profile cylinder ISO 15552 PRA series 0822121009 for Homag KAL / KFL / Ambition



This Aventics 40 x 320 Profile Cylinder 0822121009 is D=40 HUB=320 G1/4, usually used for Homag KAL / KFL / Ambition, Homag part number is 4-035-01-0054 or 4035010054.

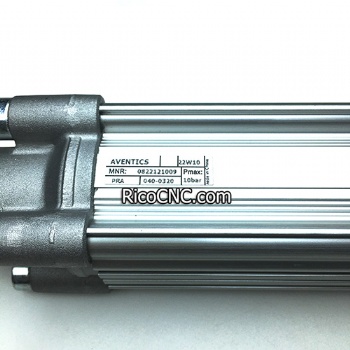

PRA series 0822121009.jpg

4-035-01-0054 Cylinder Features

• 6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly

• Available in piston diameters from 32 mm to 125 mm

• Modular sealing system allows for adaptability

• Advanced pneumatic end position cushioning

• Additional elastic damping elements

• Wide range of variants and accessories available in the configurator

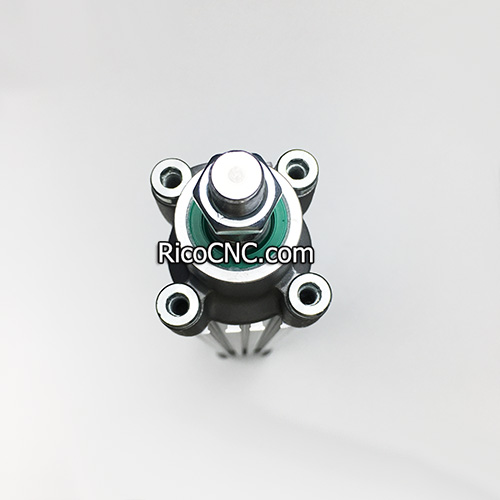

0822121009 - Aventics 40 x 320 Profile Cylinder.jpg

Cylinder for Homag.jpg

PRA series 0822121009 Specification:

Series

Profile cylinder - series PRA

Piston diameter

Piston diameter 40

Stroke

Stroke in mm

Threads

ISO Threads

Tube

Advanced Profile: sensors on 4 sides

Cushioning

Pneumatic cushioning

Piston

Piston with magnet

Piston rod

Single

Sealings

Standard

Scraper

Scraper - standard

Corrosion protection

Standard

Piston rod extension

Without piston rod extension

ATEX

Without ATEX

Trunnion mounting

Without trunnion mounting

Position trunnion mounting


End covers

End covers without surface treatment

Port position


Port position front

0° (12h)

Port position rear

0° (12h)

Accessories


Piston rod mountings

No mounting

Mounting at front cover

No mounting at front cover

Mounting orientation front

Without mounting

Mounting at rear cover

No mounting at rear cover

Mounting orientation rear

Without mounting

Counter bearing

No counter bearing

Guide units

No guiding unit, no locking element

Sensor type

Without Sensor

Sensor position

Without sensor position

Fittings front

Front cover - without fitting

Fittings rear

Rear cover - without fitting


Cylinder D=40 HUB=320 G1:4.jpg

RicoCNC also can supply other models such as:

4035010011 Aventics 0822122004 Air Cylinder

4035010016 Aventics 0822350003 Air Cylinder

4035010054 Air Cylinder 0822121009

4035010234 Air Cylinder 0822334503

Pneumatic cylinder.jpg

Welcome to contact us if any inquires!
