4-035-01-0011 4035010011 Double-acting ISO 15552 PRA Aventics 0822122004 50x100 Profile Cylinder

• 4-035-01-0011 cylinder
• 4035010011 PRA cylinder
• Aventics 0822122004
• PRA-DA-050-0100-0-2-2-1-1-1-BAS
• Profile ISO cylinder
• BOSCH 0822122004
• Aventics 50 x 100 Profile Cylinder
• Cylinder ISO 15552 PRA D=50 HUB=100 G1/4
INQUIRY

Profile ISO cylinder.jpg

4-035-01-0011 4035010011 Double-acting ISO 15552 PRA Aventics 0822122004 50x100 Profile Cylinder

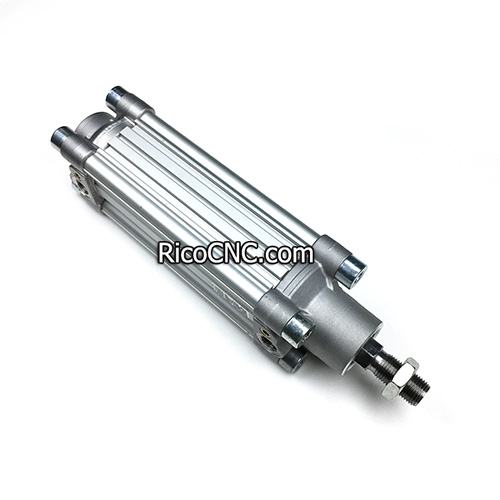

This 0822122004 AVENTICS Pneumatic Piston Rod Cylinder with 50mm Bore, 100mm Stroke, PRA Series, Double Acting, for Homag Machine, part number is 4-035-01-0011 or 4035010011.

BOSCH 0822122004.jpg

Series PRA and TRB double acting air cylinders have aluminum bodies providing a clean and robust design. The PRA is a profile (non-tie rod) version, the TRB has tie rods with a round tube. Ideal cushioning maximizes speed and load carrying capabilities. Interchangeable with many other manufacturers of ISO 15552 cylinders.

4-035-01-0011 cylinder.jpg

Features

• Ideal Cushioning

• Anodized aluminum body

• Die cast aluminum end caps

• Stainless steel piston rod

• Multiple guiding accessories available

• Available with metric or inch porting/rod threads

• Adjustable cushions

• Magnetic piston for proximity switch sensing

• Switch installation on all 4 sides

• Flush proximity groove on 2 sides on PRA

• Accessories: mounting, rod clevis, proximity switches

Specification:

Series	Profile cylinder - series PRA
Piston diameter	Piston diameter 50
Stroke	Stroke in mm
Threads	ISO Threads
Tube	Advanced Profile: sensors on 4 sides
Cushioning	Pneumatic cushioning
Piston	Piston with magnet
Piston rod	Single
Sealings	Standard
Scraper	Scraper - standard
Corrosion protection	Standard
Piston rod extension	Without piston rod extension
ATEX	Without ATEX
Trunnion mounting	Without trunnion mounting
End covers	End covers without surface treatment
Port position
Port position front	0° (12h)
Port position rear	0° (12h)
Accessories
Piston rod mountings	No mounting
Mounting at front cover	No mounting at front cover
Mounting orientation front	Without mounting
Mounting at rear cover	No mounting at rear cover
Mounting orientation rear	Without mounting
Counter bearing	No counter bearing
Guide units	No guiding unit, no locking element
Sensor type	Without Sensor
Sensor position	Without sensor position
Fittings front	Front cover - without fitting
Fittings rear	Rear cover - without fitting
