Homag 4-011-04-1874 4011041874 GRLA-1/8-QS-8-D Festo One-way Flow Control Valve

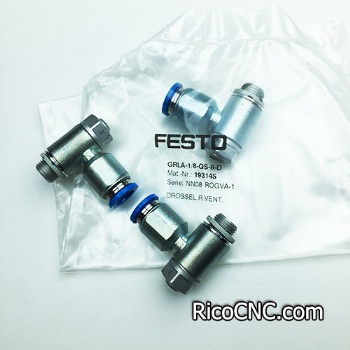

This is Festo one-way flow control valve GRLA-1/8-QS-8-D. Festo part number is 193145. The valve function is an exhaust air flow control non-return function. It can be used on Homag woodworking machine. Homag spare part number is 4011041874 or 4-011-04-1874.

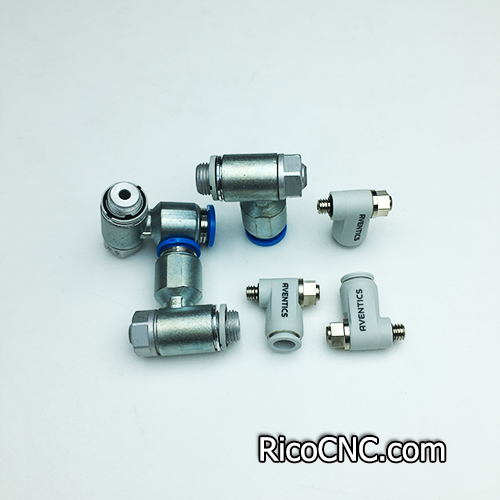

Homag flow valve 4011041874.jpg

Data sheet:

Feature

Value

Valve function

Exhaust air flow control non-return function

Pneumatic connection 1

QS-8

Pneumatic connection 2

G1/8

Adjusting element

Slotted screw

Type of mounting

Screw-in

Standard nominal flow rate in flow control direction

215 l/min

Standard nominal flow rate in non-return direction

175 l/min ... 250 l/min

Ambient temperature

-10 °C ... 60 °C

Maritime classification

See certificate

Mounting position

Any

Symbol

00991452

Operating pressure for entire temperature range

0.2 bar ... 10 bar

Standard flow rate in flow control direction 6 -> 0 bar

400 l/min

Standard flow rate in non-return direction at 6 -> 0 bar

330 l/min ... 410 l/min

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Temperature of medium

-10 °C ... 60 °C

Nominal tightening torque

3 Nm

Tolerance for nominal tightening torque

± 10%

Product weight

22 g

Material of screwed trunnion

Wrought aluminum alloy

Note on materials

RoHS-compliant

Seals material

NBR

Releasing ring material

POM

Material of adjusting screw

Brass

Swivel joint material

Die-cast zinc Chromated

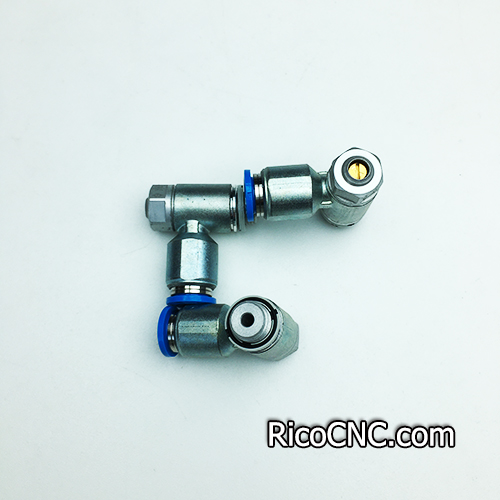

4011041874 FESTO valve.jpg

válvula de flujo 4011041874.jpg

RicoCNC can offer a range of CNC and Woodworking machine parts and industrial automation parts.
