Future Life Technology MPG Hand Wheel iHDW-BPA4S-IM-C24

Future Life Technology MPG Hand Wheel iHDW-BPA4S-IM-C24

• Future life iHDW-BPA4S-IM-C24
• Manual Pulse Generator for Leadwell V30i
• Intelligent Remote Manual Pulse Generator
• iHDW Type B (Basic)
• Hand Wheel Generator iHDW-BPA4S-IM-C24
• IHDW hand wheel
• Fanuc Oi-MD control system
• iHdw IM-C24
INQUIRY

Future life iHDW-BPA4S-IM-C24.jpg

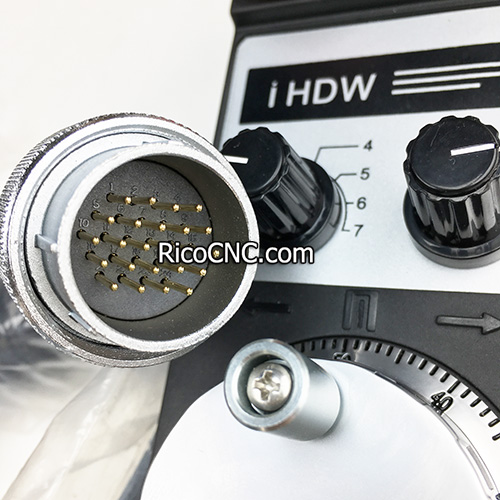

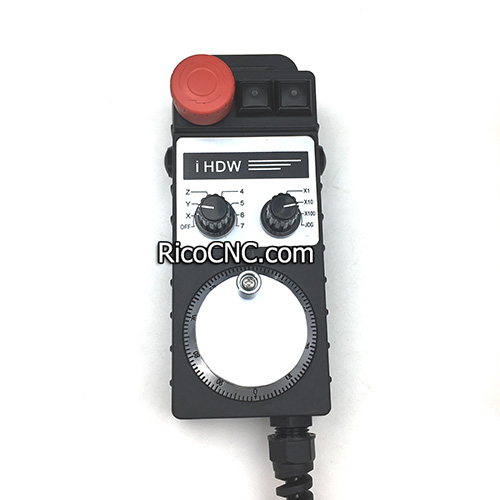

This Intelligent Remote Manual Pulse Generator, part number iHDW-BPA4S-IM-C24 is the latest generation of remote MPG. Built-in LCD displays coordination and status of function. Designed for high level or large CNC machines.

iHdw IM-C24.jpg

This iHDW-BPA4S-IM-C24 always used for the machine Leadwell V30i and Fanuc Oi-MD control system.

Intelligent Remote Manual Pulse Generator.jpg

There are iHDW-B/F/L Series. iHDW-BPA4S-IM-C24 is the Basic Type, 5V power, 100PPR Pulse, Output R330, Step number Rotary Switch Steps: PIP 4 AXES, Cable length 3m, Date Interface I/O, Magnet.


iHDW-BPA4S-IM-C24 Features:

• Receive messages from CNC control system

• Meet customers’ various demands

• Display data transferred by PLC digital I/O (serial out simulation) or RS232C

• Patented magnetic back cover

• Enabling switches for option

• Optional emergency stop switch

• Three types of model for option. Type B , F and L

• Type F offers 6 key switches for option

• Multiple output types compatible with different CNC control systems

• Provide reverse polarity protection

• Easy to handle

• Oil & waterproof design

iHDW-BPA4S-IM-C24 specification:

Electrical	Power Supply	DC 5V (±10%)
	Pulse Number	100PPR
	Output Current	100mA
	Signal Mode	A, B or A, Ā, B, B
	Response Frequency	5KHz
	Power Consumption	100mA ~ 150mA
Communication	Communication Interface	Digital I/O, RS232C
	Data Format	8 data bits +1 parity bit (even), 1 stop bit
	Transfer Speed	9600 baud, automatic detection
Mechanical	Rotating Torque	250 gf.cm
	Rotating Life	1,000,000 min
	Material	Plastic
	Weight	Approx. 1kg
Environmental	Operating Temperature	0°C/+ 50°C
	Storage Temperature	-10°C /+60°C (w/o condensation)
	Humidity	35%/85%
	Vibration	0.5G X, Y, Z each direction 2h
	Shock	2G X, Y, Z each direction 3 times
