Genuine HIWIN Square Type HGH20CA Linear Guideway

Genuine HIWIN Square Type HGH20CA Linear Guideway

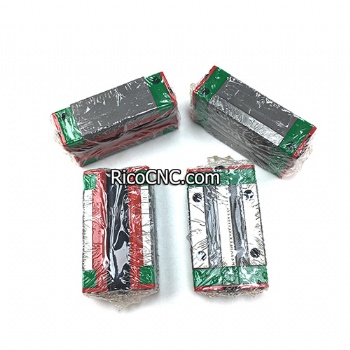

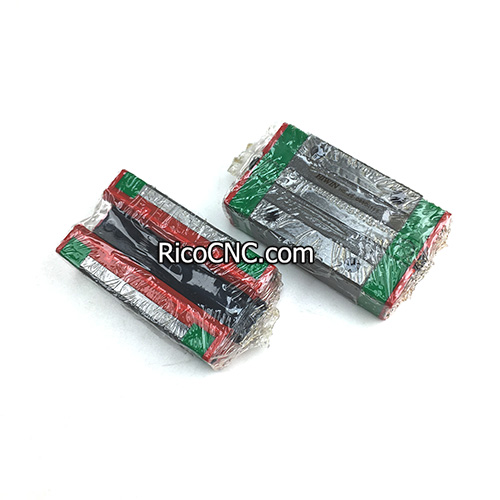

This is HIWIN linear block HGH20CA is a HG series, square type, model size: 20, heavy duty.

The HIWIN HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, the HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

HIWIN Guide Carriage HGH20CA specification:

Size: 20 mm

Block Type: Square

Load Type: Heavy Load

Block Mounting Type: from Top

Total Height H: 30 mm

Block Width W: 44 mm

Block Length L: 77.5 mm

Thread Size: M5 x6

Basic dynamic load rating C: 27.1 kN

Basic static load rating C0: 36.68 kN

Rail Width: 20 mm

Rail Height: 17.5 mm

Block Weight: 0.3 kg

HIWIN Carriage HGH Square type HGH-20-CA-Z0-H Feature:

• High Square type model (HGH)

• Heavy Load model (CA)

• Standard we have Z0 Pre Tension, perfect for CNC-Routers

• High Precision Class (H)

• 4 x Threaded hole in carriage allows mounting from above

• Mounting from below not possible (we advise to use HGW model then)

These carriages fit the HIWIN HGR and HGT Profile rails. This particular type is a higher but compacter type model. We also have a wider HGW type model available

Please check our website, if you can not find, please contact us for more information!
