R166671420 Carriage KWD-030-SKS-C1-N-1 Bosch Rexroth Ball Rail Runner Block

R166671420 Carriage KWD-030-SKS-C1-N-1 Bosch Rexroth Ball Rail Runner Block

• KWD-030-SKS-C1-N-1
• BRL-LT R166671420
• R166671420 Carriage carbon steel
• Size 30 Ball Rail Runner Block
• Ball runner block Bosch-Rexroth R166671420
• Bosch Rexroth R166671420 ball runner blocks
• Bosch Rexroth linear motion
• Rexroth ball runner blocks
INQUIRY

R166671420 Carriage KWD-030-SKS-C1-N-1 Bosch Rexroth Ball Rail Runner Block

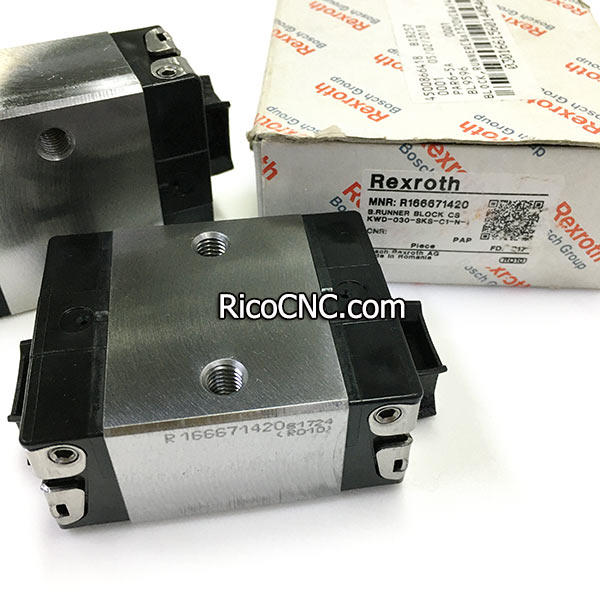

BRL-LT R166671420.jpg

R166671420 Specifications
• Area of application: For restricted space in longitudinal and transverse direction
• Attachments on the Ball Runner Block can be mounted from above
• The same high load ratings in all four main directions of loading
• Long-term lubrication is possible over several years
• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner • Block versions within each accuracy class.
• Ball runner block CS, made of Carbon steel

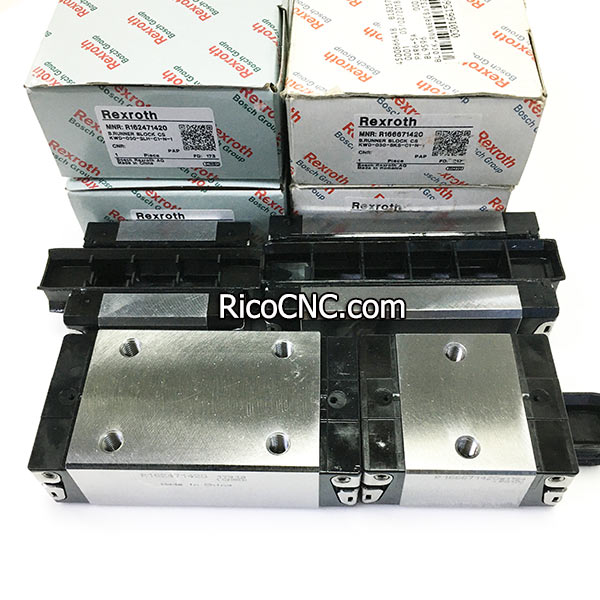

R166671420 ball runner blocks.jpg

KWD-030-SKS-C1-N-1 additional information:
Rexroth R065822040 size.jpg

Weight [kg]	0.6000
Size [mm]	30
A [mm]	60
H [mm]	42
B [mm]	75.3
E1 [mm]	40
Preload class	C1 - moderate preload
Accuracy class	N - normal
Seal type	SS - standard seal, Without ball chain
B1 [mm]	45
H1 [mm]	35.35
S2	M8
T [mm]	80
A2 [mm]	28
H2 [mm]	28.35
N6 [mm]	17
S5 [mm]	9
Load capacity C [N]	25600
Load capacity C0 [N]	28900
Load moment Mt [Nm]	440
Load moment Mt0 [Nm]	500
Load moment ML [Nm]	200
Load moment ML0 [Nm]	230
Brand	Bosch-Rexroth

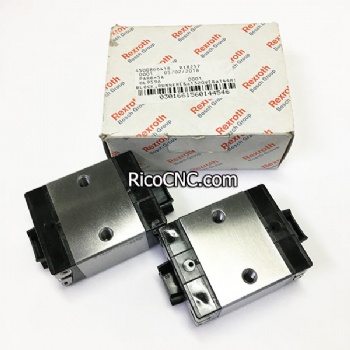

Ball runner block Bosch-Rexroth R166671420.JPG

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
