Omron Automation Safety door-lock switch D4NL-1DFA-B

Omron Automation Safety door-lock switch D4NL-1DFA-B

• D4NL-1DFA-B
• Omron Switch
• Guard Lock Safety-Door Switch
• Safety Interlock Switches
• D4NL-1DFA-B Switch
• Switch Safety Interlock N.C. DPST/DPST Key 3A 240VAC
• Omron Automation D4NL-1DFA-B
• D4NL guard-lock safety door switches
INQUIRY

Omron Automation Safety door-lock switch D4NL-1DFA-B

D4NL-1DFA-B Safety door-lock switch, mechanical lock, 24 VDC, 2NC + 2NC, 10 A, PG 13.5 entry.

The D4NL guard-lock safety door switches are available with four or five built-in contacts. When locked, they have a key holding force of up to 1300N. Mechanical lock/solenoid release types and vice versa set up the complete range in combination with various conduit types.

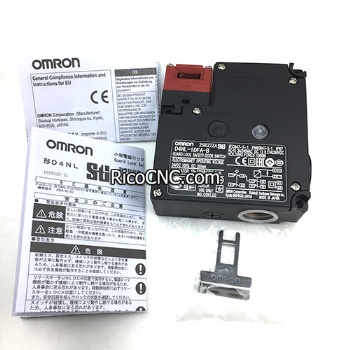

D4NL-1DFA-B Switch.jpg

D4NL-1DFA-B Features:

• Best-selling guard lock safety-door switch available in several compact, multi-contact models

• Selectable Operation Key insertion direction and adjustable mounting ensure installation flexibility

• Lineup includes models with a conduit size of M20

• IP67 degree of protection

• Variety of metallic heads available

• Safety door switch with electromagnetic lock or unlock mechanism

• Models with four or five built-in contacts

• Strong key holding force: 1300N

• For standard loads and micro loads

• Keys are compatible with D4GL and D4NS

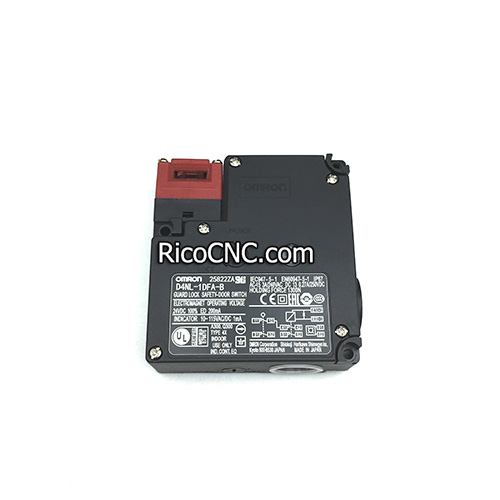

Omron Automation D4NL-1DFA-B.jpg Guard Lock Safety-Door Switch .jpg

Specification:

Door switch type	Key-operated
Guard-lock	Yes
Material housing	Plastic
Material head	Plastic
Ambient temperature (operating)	-10-55 °C
Connection method	Terminal block
Cable length	0 m
Direction of operation	Adjustable
Holding force	1300 N
Door contacts NC	2
Door contacts NO	0
Lock monitor contacts NC	2
Lock monitor contacts NO	0
Lock/Release key type	Standard key
Lock/Release key position	Bottom
Solenoid voltage	24 V
LED indicator
Degree of protection (IP)	IP67
Conduit size	PG13.5
Number of conduits	2
Switch action	Slow action
Shape	Cuboid
Overall length	95 mm
Height of sensor	35.5 mm
Width of sensor	88.5 mm
Lock/Release logic	Power to unlock (Mechanical lock)

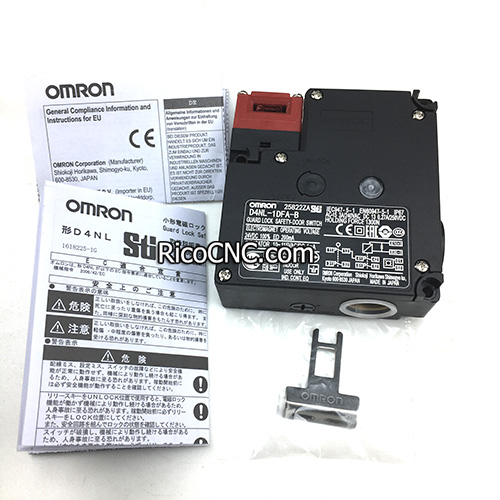

Omron Switch.jpg

Rico also can supply other models from Omron:

D4NL-1CFG-B D4NL-1DFG-B D4NL1BFG-B D4NL-2DFA-BS D4NL-2EFA-B D4NL-1AFA-B D4NL-1AFG-B D4NL1AFH-B D4NL-1BFA-B D4NL-1BFB-B D4NL-1CFA-B D4NL-1CFB-B D4NL-1DFA-B D4NL-1GDG-B D4NL-2AFA-B

D4NL-2AFG-B D4NL-2AFH-B D4NL-2BFA-B4 D4NL-2BFG-B D4NL-2CFA-B D4NL-2CFG-B D4NL-2DFA-B D4NL-2DFA-B4 D4NL-2DFG-B D4NL-2EDG-B D4NL-2FDG-B D4NL-2FFG-B D4NL-2HFG-B D4NL-4BFA-B4 D4NL-4EDA-B4-NPT D4NL-4EFG-B D4NL-4GDA-B4-NPT D4NL-4GDG-B4-NPT D4NL-RK D4NL-4FFB-B D4NL1BFG-B D4NL-4EDG-B4-NPT.

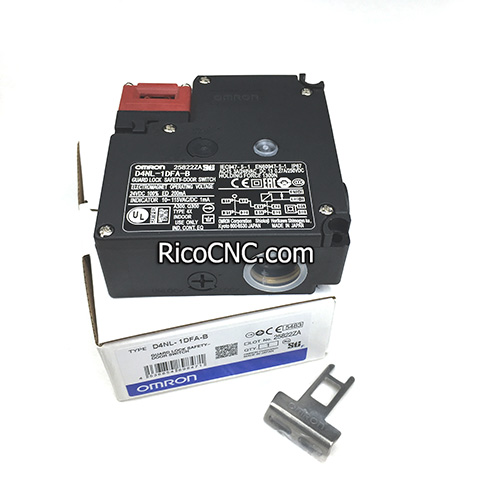

Safety Interlock Switches.jpg
