FANUC A06B-6079-H206 Dual Axis Alpha Servo Drive Type SVM2-40X2



Fanuc A06B-6079-H206 AC Servo Drive description:

Part Number: A06B-6079-H206

Description:

2 AXIS ALPHA SERVO MODULE MDL SVM2-40/40

Product Series: A06B-6079

Availability: In stock

Core Exchange: Optional

Special Note: MUST SPECIFY IF USING ONE OR TWO CX5 BATTERY PORTS

SERVO AMP MODULE A06B-6079-H206.jpg

FANUC A06B-6079-H206.jpg

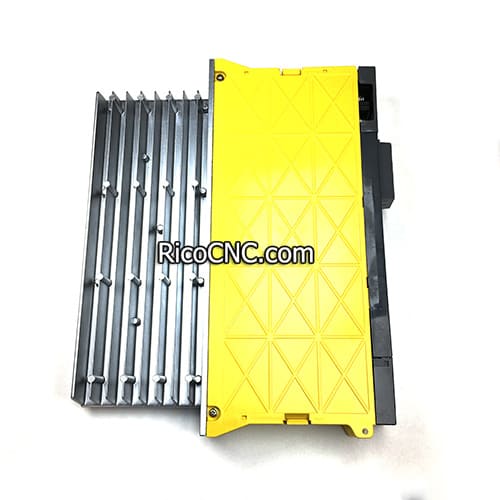

The FANUC A06B-6079-H206 Servo Amplifier Module is a dual axis Alpha Servo Drive Model SVM2-40/40. As part of the A06B-6079 series of AC Servo Drives, the FANUC A06B-6079-H206 is Type A interface and fitted on small to medium size CNC machines for 0M, OT, 15, 16, 18, and 21 series controls.

 2 AXIS ALPHA SERVO MODULE MDL SVM2-40:40 .jpg

The FANUC A06B6079H206 amplifier powers with a rated input of 283-325V (5.3kW), a maximum output voltage of 230V, and a rated output current of 12.5A on the L axis and M axis.

 Fanuc A06B-6079-H206 AC Servo Drive.jpg

Make sure to specify if you are using one or two CX5 battery ports when you submit your inquiry.

 FANUC servo amp.jpg
