ISO20 D33 Tool Holder Locking Device for CNC Machine

ISO20 D33 Tool Holder Locking Device for CNC Machine

• Tool Holder Tightening Stand ISO20
• ISO20 D33 Tool Locking
• Locking Fixture ISO20 33mm diameter
• ISO20 Collet Chuck Roller Bearing Tightening Stand
• ISO20 Toolholder Mounting Device
• ISO20 toolholder tightening fixtures
• ISO 20 Tool Holder Locking Clamp Device
• ISO20 tool holder clamp fixture
INQUIRY

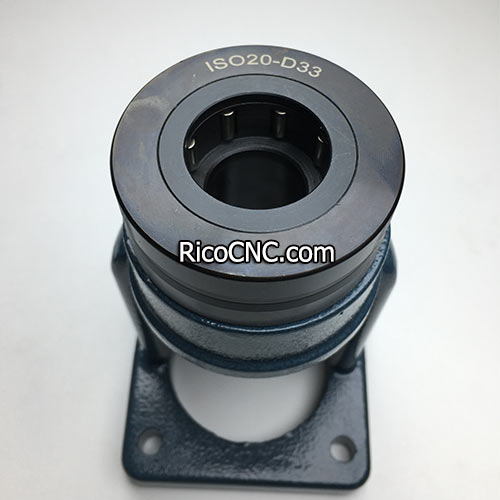

ISO20 Tool Locking.jpg

ISO20 D33 Tool Holder Locking Device for CNC Machine

This tool holder tightening fixture is design for ISO20 tool holder 33mm diameter, designed with a rotating handle, which can be locked on the ordinary table and chair to prevent sliding when moving.

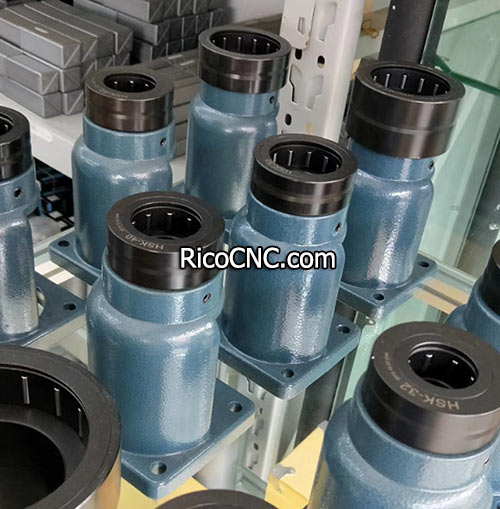

Locking Fixture ISO20.jpg

Using high quality bearing, high hardness and wear resistance, strong and durable.

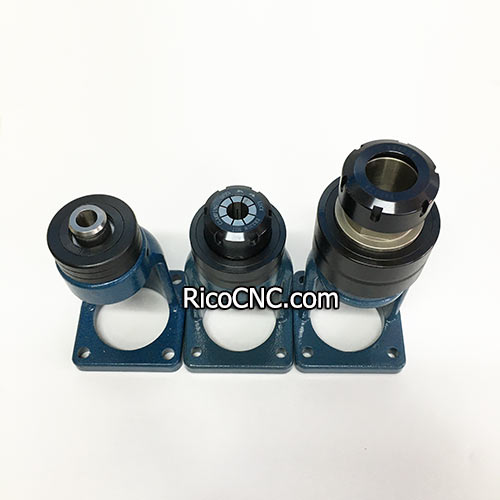

ISO20 tool holder clamp fixture.jpg

How to use: Fix the toolholder clamping fixture on the table by four M10*40 screws, put the toolholder into the inner hole, lock it and use the wrench to unlock and lock the collet nut.
ISO20 Roller Bearing Tightening Stand.jpg

ISO20 tool holder locking fixtures Properties and application:
• Designed for mounting toolholders with ISO20 shank size.
• Roller-bearing design for non-keyway toolholder tightening and loosening.
• Mounting only in vertical position.
• Holes in the base are on M8 screws to mount on example workbench for stable operation.
• Smooth running bearing fits perfectly into the collar.
• With this base, you can easily unscrew and spin the tool in a holder with an HSK shank.
• Clamping bearing lubricated and ready to work.
• Easy acces to toolholder shank.
