Roller Bearing HSK25E Tightening Fixture Lock Device

Roller Bearing HSK25E Tightening Fixture Lock Device

• HSK25 Tool Holder Tightening Fixture
• HSK25E Tool Locking
• Taper type: HSK25; Locking Stand
• HSK 25 Roller Bearing Tightening Stand
• Tightening Fixture for HSK25 A/C/E toolholder
• HSK tool holder tightening fixtures
• HSK 25 Tool Holder Locking Clamp Device
• HSK25E tool tightening stand
INQUIRY

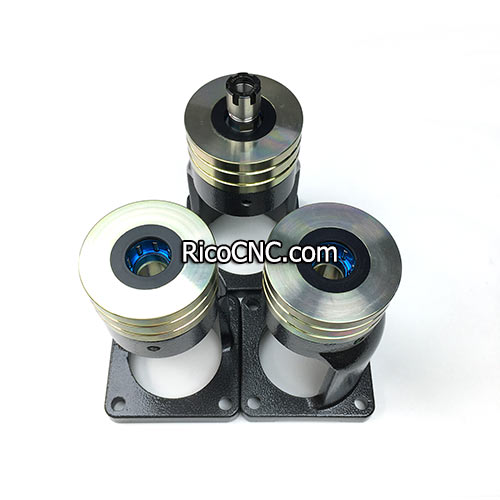

HSK25 Tool Holder Tightening Fixture.jpg

Roller Bearing HSK25E Tightening Fixture Lock Device

The locking device roller bearing diameter is 25mm, for removal and tighten the collets and nut on HSK25 A/C/E toolholder, easy to install, reliable, Protect tool holder, Could bear greater torque, avoid skidding.

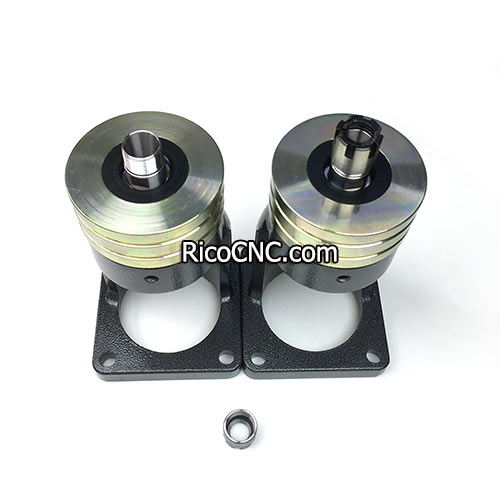

Taper type HSK25; Locking Stand.jpg
HSK 25E tool holder tightening stand features:
• This steel stand is an essential part of any CNC routing tool change process.
• Auto-locking roller bearings grip the tool holder flange offering maximum protection to the tool taper.
• Easy to use auto-locking fixture for HSK25E tapered toolholders.
• Locking roller bearing design for quick changing your toolings.
• This tool holder is blocked on the flange diameter. The holder body is made of durable steel, while the base is made of an anodized alloy.
• The auto-locking system will firmly hold your chuck in place from any rotation once placed inside. It’s vital you fasten your mounting stand to a secure, even working surface before using it.
• With 4 holes at the base for fasteners, you’re able to bolt it down wherever your change-over workstation is located, in both horizontal and vertical configurations.

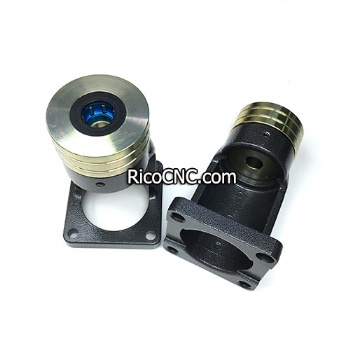

HSK 25 tool holder locking stand.jpg
