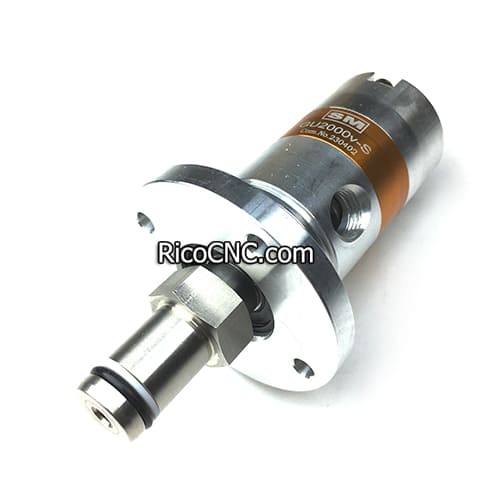

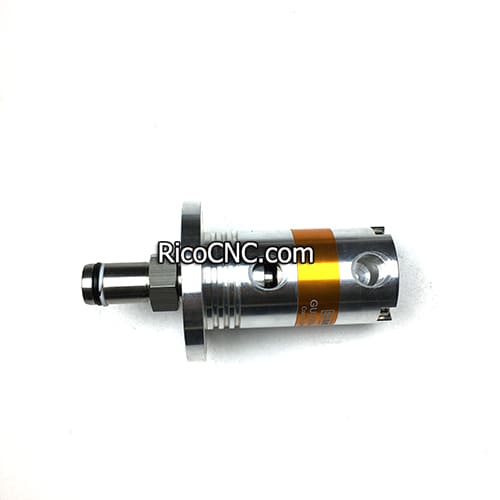

SM Rotation Unions GU2000V-S Special for Customer
GU2000v series rotary joints are high precision rotary joints for high speed rotating spindles fed with air, coolant and hydraulic oil. GU2000V-S is a customized joints which with 16mm connector.
There are several options for GU2000V:
GU2000v-M16xP1.5 LH Max. RPM 20000
GU2000v-M12xP1.25 LH Max. RPM 18000
GU2000v-M10xP1.0 RH Max.RPM 16000
GU2000v-S 16mm
GU2000v series Specifications:
PRESSURE 100 barMAX.MAX. TEMPERATURE 110℃
DRY RUN
FILTRATION 20 μm
seal closing requirement
MIN. PRESSURE 2 bar
MIN.FLOW RATE 8 L/min
Rico can supply full ranges of rotary joints from SMARTC, such as
AU2000-M16xP15 LH Max. RPM 15000
AU2000-M12xP1.25 LH Max. RPM 15000
AU2000-M10xP1.0 RH Max. RPM 12000
EU2000-M12xP1.25 LH Max. RPM 20000
Also supply SM clamping grippers, tool clamping, etc.
Rico also can supply other brands rotary unions, such as RIX, ROTOFLUX, DEUBLIN, ACROW, etc.
