SMARTC Rotary Union EU2000 for CNC Machine Centers

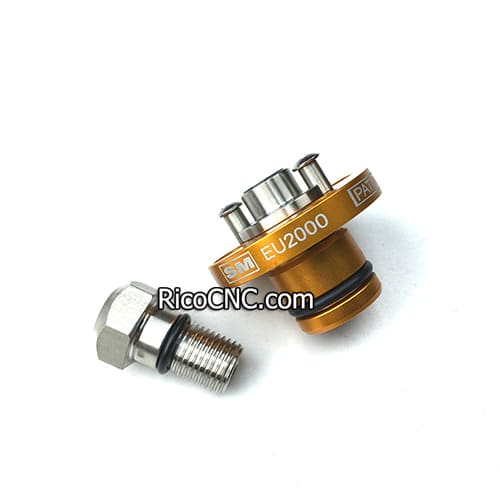

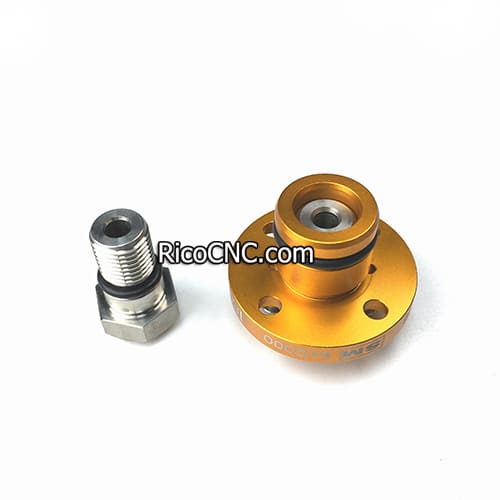

This is a bearing less rotary joints from SMARTC company, the model number is EU2000. It is a rotary units for CNC machine centers.
SMARTC EU2000 OPERATING DATA:
M12XP1.25-LH
MAX. RPM 20000
MAX.PRESSURE 100 bar
MAX. TEMPERATURE 110℃
DRY RUN
FILTRATION 20 μm
Seal closing requirement :
MIN.PRESSURE 2bar
MIN.FLOW RATE 8 L/min
Rico can supply full ranges of rotary joints from SMARTC, such as
AU2000-M16xP15 LH Max. RPM 15000
AU2000-M12xP1.25 LH Max. RPM 15000
AU2000-M10xP1.0 RH Max. RPM 12000
GU2000v-M16xP1.5 LH Max. RPM 20000
GU2000v-M12xP1.25 LH Max. RPM 18000
GU2000v-M10xP1.0 RH Max.RPM 16000
EU2000-M12xP1.25 LH Max. RPM 20000
Also supply SM clamping grippers, tool clamping, etc.
Please contact us for more information!
