ACROW G200711M160180 Rotating Coolant Unions

• Rotating coolant unions
• G200711M160090
• G200711M160180
• Taiwan ACROW TR ROTARY JOINT
• Accessories for machining centers
• G2007 coolant rotaring union
• Rotary Unions for Coolant
• Rotary Unions Coolant for rotating spindle
INQUIRY

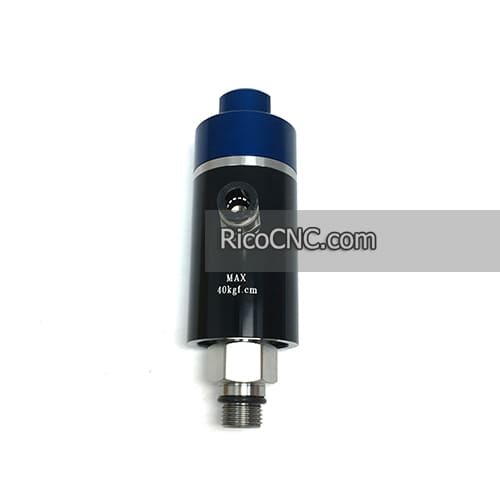

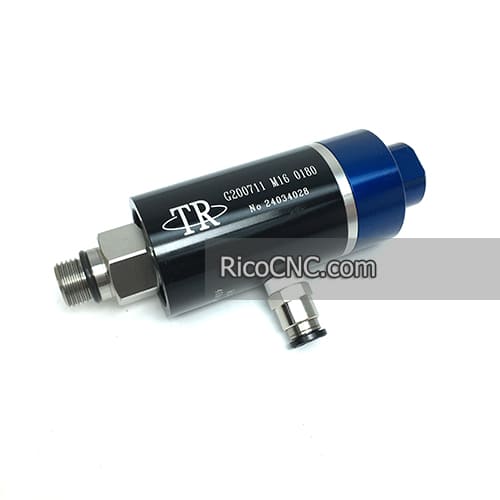

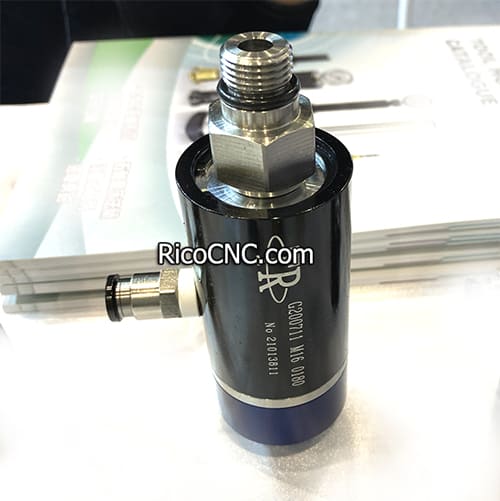

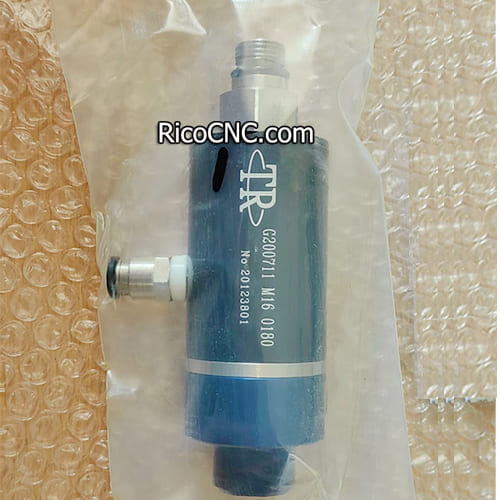

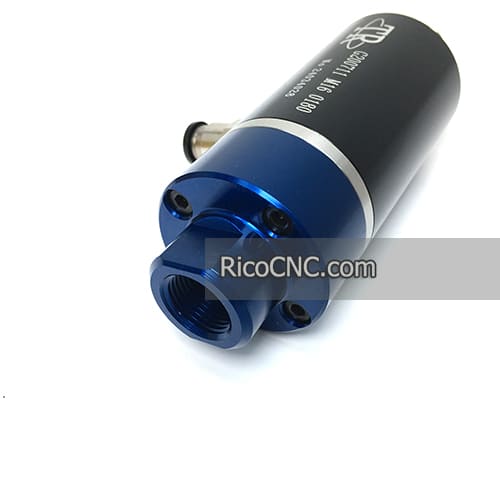

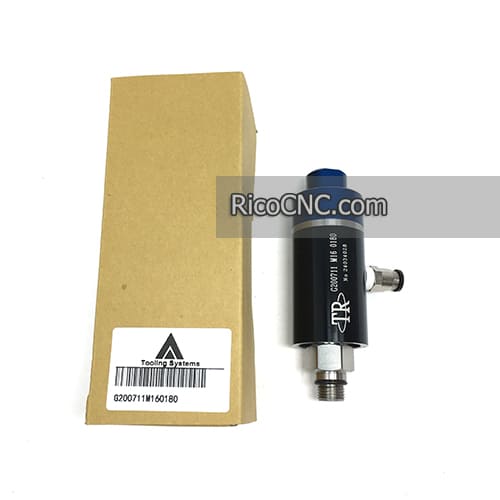

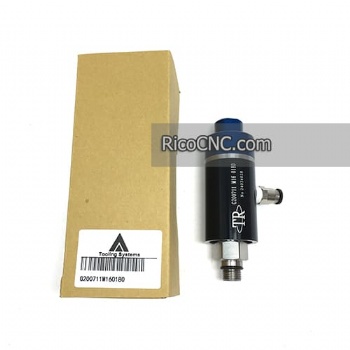

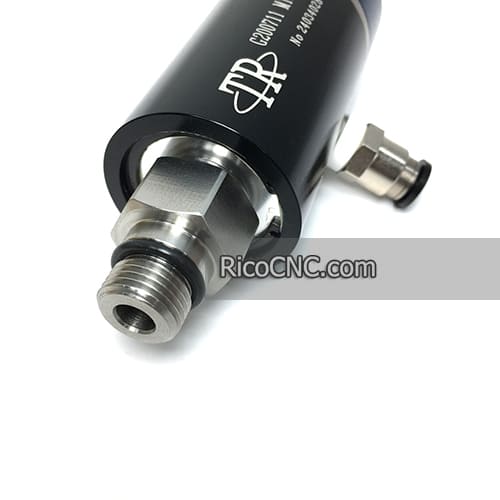

ACROW G200711M160180 Rotating Coolant Unions

This rotary joint is accessories for machining centers, for coolant rotating spindle, made by ACROW, the model number is G200711M160180.

G200711 M16 0180.jpg

Specifications of Rotating coolant unions 200711M160180:

G200711 M16 0180

Max.Pressure	50 bar
Min. Closes Seal Pressure	4 bar
Max. rpm	20,000rm
Max. Flow Rate	28L/min
Max. Working Temp.	70°C
Coolant Purity	<25μ

G200711M16180	M16*1.5PLH
G200711M16090	M16*1.5PLH

Features of G200711M160180 coolant unions

1. rotary joint is a kinds of closed rotary joint, can be 360 ° rotation conveying media.

2. The performance is stable, not easy to leak, smooth, low resistance. 360 ° rotation, fast response speed.

3. There are 2 precision bearings inside the rotary joint, which is smooth and durable, strong and flexible, with low friction coefficient, and can be operated in high speed.

4. The applications cover almost all processing and manufacturing industries. Such as: metallurgy, machine tools, power generation, petroleum, rubber, plastics, textile, printing and dyeing, paper and so on.

RicoCNC can supply full products from ACROW, such as rotary joints G2008RUL0090, G2008RUL0180, G200711M160180, G200711M160090, CNC grippers-BT30 grippers, BT40 grippers, BT50 grippers, CAT40 grippers, CAT50 grippers, OTT grippers.

There are also other brands of rotary union, such as RIX, ROTOFLUX, Deublin, SMARTC, ACROW rotary unions.
