CNC Tool Extension Collet Chuck Extender Rod Straight CNC Milling Tool Holder

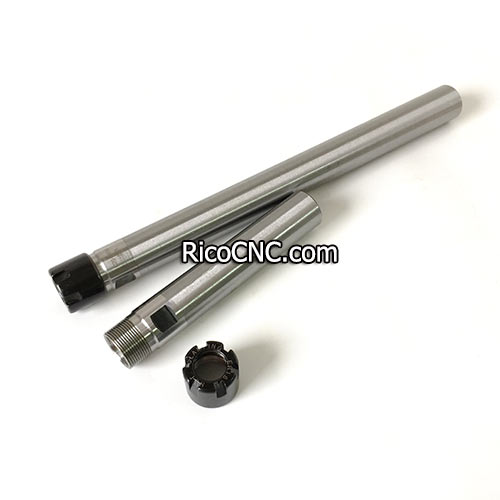

CNC milling tool extension, Suitable for machining in tight space, or as extension for milling chuck, also called tool extender, to reduce tool holder impact on narrow and finer machining detail as well as to upgrade machine tool holding capability to smaller diameter cutting tools.
cnc tool extender.jpg

Every woodworker has experienced bit that are just a little too short for the job, especially in router table applications or with jigs and templates that eat up the length of standard bits. Here is an easy and inexpensive solution. Collet Chuck extension fits any ER collet router.
CNC milling tool extension.jpg

Collet Chuck Tool Extension Holder Features:
• Router bit extension rod + collet chuck kit for woodworking trimming, milling, engraving machine.
• Made of high-quality spring steel material, durable and sturdy.
• The extension rod can eliminate the dangerous of withdrawing the shank from the collet.
• And extending the router bit to provide the full depth of cut.
• Make you work better, safer, more efficient and more labor saving.
• Straight collet chuck holder CNC milling lathe ERA collet is a good replacement part for your old one.
• The nut can direct rotation tighten, high rigidity and strong clamping force.

Collet Chuck Tool Extension.jpg

Collet Tool Extension Holder Models:

Model

Shank   dia.(mm)

Length(mm)

Collet   type

Nut   type

C10-ER8A-100L

10

100

ER8

A

C10-ER8M-100L

10

100

ER8

M

C10-ER8A-150L

10

150

ER8

A

C10-ER8M-150L

10

150

ER8

M

C12-ER8A-100L

12

100

ER8

A

C12-ER8M-150L

12

150

ER8

M

C12-ER11A-100L

12

100

ER11

A

C12-ER11A-150L

12

150

ER11

A

C12-ER11M-100L

12

100

ER11

M

C12-ER11M-150L

12

150

ER11

M

C16-ER16A-100L

16

100

ER16

A

C16-ER16A-150L

16

150

ER16

A

C16-ER16A-200L

16

200

ER16

A

C16-ER16M-100L

16

100

ER16

M

C16-ER16M-150L

16

150

ER16

M

C16-ER16M-200L

16

200

ER16

M

C20-ER16A-100L

20

100

ER16

A

C20-ER16A-150L

20

150

ER16

A

C20-ER16A-200L

20

200

ER16

A

C20-ER16M-100L

20

100

ER16

M

C20-ER16M-150L

20

150

ER16

M

C20-ER16M-200L

20

200

ER16

M

Collet Tool Extension Holder.jpg

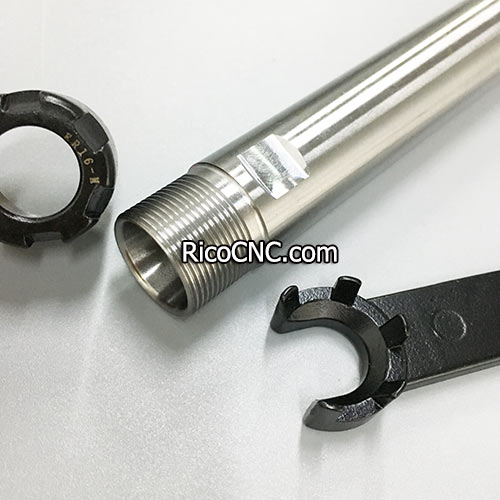

A tool extension and M tool extension difference:
1, M type with the small screw leads, it holder the tool extension body tightly, suitable for finish milling.
2, A type with the big screw leads, the space between with it and the tool extension body is a little big, it suitable for rough and semi-finish milling.
3, Use same ER collet, A type nut diameter is bigger than M type nut.

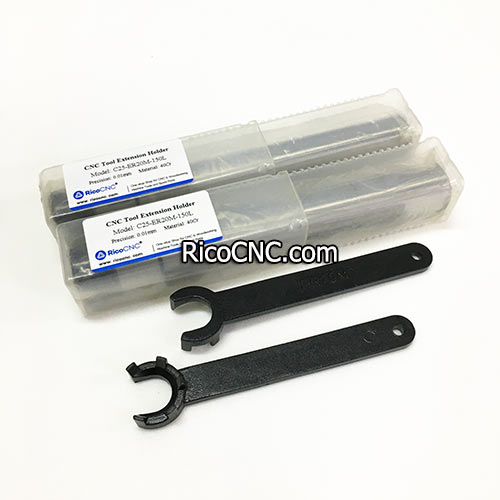

4, A type nut is easy to tighten and loose, M type nut should use M type spanner.
ER Mini Nut Straight Shank Extensions.jpg

RicoCNC is a one-stop shop for CNC spare parts, which widely used on CNC routers, CNC milling machine, CNC edm machines, etc.
tool extension holder.jpg

If any needs of CNC accessories, welcome to contact us.
