New FESTO VUVB-ST12-M52-MZH-QX-D-1T1 558369 Air Solenoid Valve

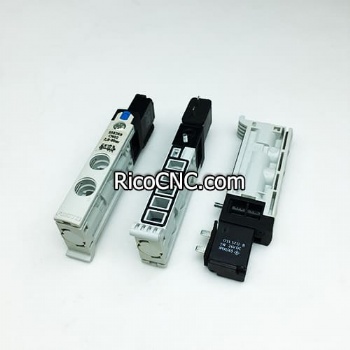

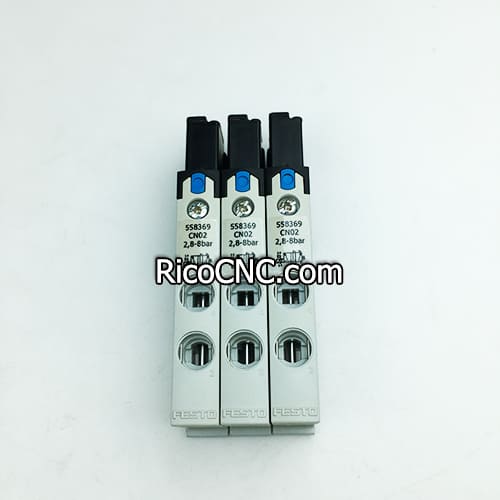

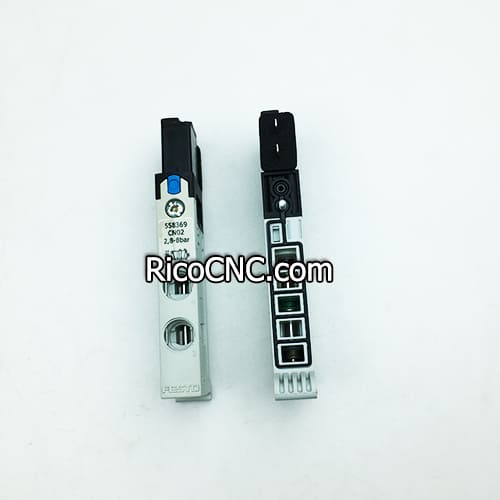

This is Festo solenoid valve VUVB-ST12-M52-MZH-QX-D-1T1. The part number is 558369
Festo magnet valve 558369.jpg

Festo directional pneumatic control valve .jpg

Product details of Festo magnet valve 558369:
Valve function=5/2 monostable, Type of actuation=electrical, Valve size=12 mm, Standard nominal flow rate=240 – 400 l/min, Operating pressure=2,8 – 8 bar

FESTO air solenoid valve.jpg

FESTO 558369.jpg

Date sheet:

Feature

Value

Valve function

5/2-way, monostable

Type of actuation

Electric

Valve size

12mm

Standard nominal flow rate

240 l/min...400l/min

pneumatic working port

QS-4
  QS-6

Operating pressure

0.28 MPa...0.8 MPa

Operating pressure

2.8 bar...8 bar

Design

Poppet valve with spring return

Type of reset

Mechanical spring

Degree of protection

IP65

Nominal size

4mm

Exhaust-air function

Without flow control option

Sealing principle

Soft

Mounting position

optional

Manual override

Non-detenting

Type of piloting

Pilot actuated

Pilot air supply

External

Flow direction

Non-reversible

Symbol

00991009

Note on operating pressure

0- 0.8 MPa with ext. pilot air
  0-8 bar with external pilot air

Pilot pressure

0.28 MPa...0.8 MPa

Pilot pressure

2.8 bar...8 bar

Switching time off

14 ms

Switching time on

6ms

Duty cycle

100%

Max. positive test pulse with 0 signal

800 μs

Max. negative test pulse with 1 signal

300 μs

Characteristic coil data

24 V DC:1.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated   operation will
  always be required)

Vibration resistance

Transport application test with severity level 1 to FN 942017-4   and EN
  60068-2-6

Shock resistance

Shock test with severity level 1 to FN 942017-5 and EN   60068-2-27

FESTO 558369 solenoid valve.jpg

Festo VUVB-ST12-M52-MZH-QX-D-1T1.jpg

RicoCNC can offer a range of industrial automation parts and components, such as Festo, Func, Omron, IFM, Balluff, Beckhoff, Sick, and other brands.
