HIGHLY D 5020 Microswitch SNAP ACTION Roller Plunger Limit Switch

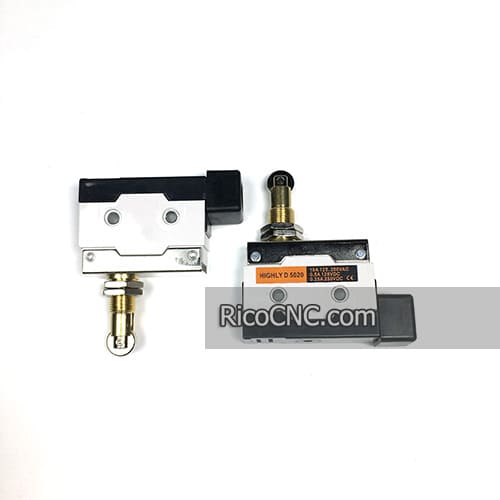

This is a Microswitch SNAP ACTION, 10A/250VAC, with longitudinal roller, size is 54.8x21.5x38.7mm, made by HIGHLY Electric, the model number is D 5020.
Specifications of HIGHLY D 5020 limit switch:
| Function | Limit Switch |
| Electrical Operations | 100,000 |
| Mechanical Operations | 1,000,000 |
| Product Series | Limit Switch: D Series |
| Rating | 10A, 125V or 250VAC |
| Contact Resistance | 25mΩ max. (initial) |
| Insulation Resistance | 100MΩ min. (at 500VDC) |
| Dielectric Strength | 1,000VAC,50/60Hz for 1 minute |
Features of HIGHLY D 5020 limit switch:
• Roller Plunger Limit Switch
• High precision and long life
• Suitable for applications demanding higher mechanical strength
• Gasket diaphragm seal provides high environmental resistance
• Rating 10A, 125V or 250VAC
Rico supplies various limit switches and automation parts, please contact us for more information!
