Kwangwoo EUNIE0008 Rotary Encoder RAA-60 Sereis 10 Degree

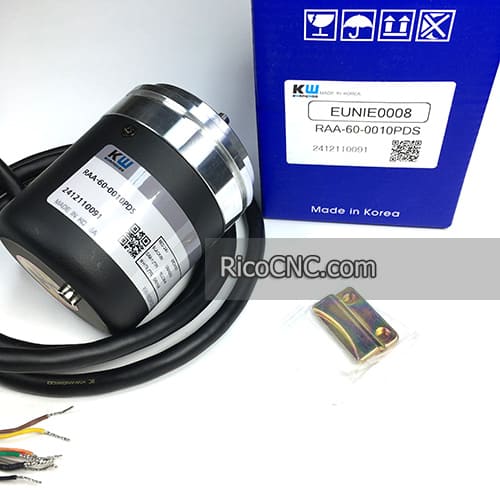

This is a Rotary Encoder made by Kwangwoo, the model number is RAA-60-0010PDS EUNIE0008. The rotary encoder is a sensor that converts mechanical movement into electrical signal (pulse), it used for Doosan Machine.
EUNIE0008 Rotary Encoder Electrical Specifications
| Supply Voltage | PNP Open Collector | VL = 0.5V, VH = 20V (DC+24V) |
| Current Consumption | PNP NPN | 120 mA Max |
| Max. Response Frequency | 20 kHz Max. | |
| Rising/Falling Time | PNP Open Collector | 3μs |
RAA-60-0010PDS Connection Table
| Color | PNP (10 Degrees) |
| Red | Vcc |
| Black | GND |
| Gray | TP1 |
| White | TP2 |
| Brown | DATA 1 |
| Orange | DATA 2 |
| Yellow | DATA 4 |
| Green | DATA 8 |
| Blue | NC |
| Purple | NC |
There are many other rotary encoder supplied here, such as
HS5-11LN858Z DELTA Incremental Rotary Encoder
Yaskawa Rotary Encoder UTSIH-B17CK for SGMGH Servo Motor
Kwangwoo Manual Encoder Wheel RIM-80-0100-BVA for DOOSAN Machines
A860-0203-T001 Fanuc Pulse Generator Rotary Encoder
etc.
Please contact RicoCNC for more information!
