10.01.12.00825 VCBL-K1 120x50x50 D-360 Vacuum Pods For 1-circuit Console

10.01.12.00825 VCBL-K1 120x50x50 D-360 Vacuum Pods For 1-circuit Console

• VCBL-K1 120x50x50 D-360 vacuum pods
• 10.01.12.00825 suction pods
• Dimensions (LxB): 120 x 50 mm
• Height H: 50 mm
• Arrangement: Can be turned 360°
• Replacement pods for Schmalz 10011200825
• Vacuum block 120x50x50
• Vacuum block for Schmalz 1-circuit console
INQUIRY


10.01.12.00825 VCBL-K1 120x50x50 D-360 Vacuum Pods For 1-circuit Console

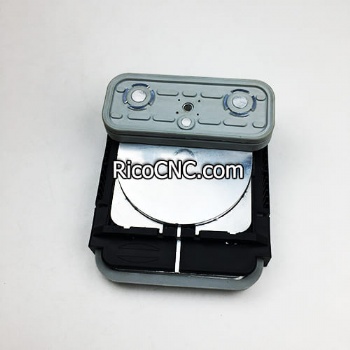

This part is VCBL-K1 120x50x50 D-360 vacuum suction pods. It can be rotatable 360° This plastic vacuum pods with guide strips are suitable for Schmalz 1-circuit console，used for narrow workpieces clamping. These pods are compatible with Schmalz's 10.01.12.00825 replacement part number.
10.01.12.00825 CNC vacuum pods.jpg

Top and bottom suction plates for this pod are replaceable.

top suction plate for the vacuum block
Part no. 10.01.12.00012
Dimensions (LxB): 120 x 50 mm
Height H: 15.5 mm

bottom suction plate for vacuum block
Part no. 10.01.12.00228
Dimensions (LxB): 140 x 115 mm

The top part of the vacuum cup block is mounted crosswise (Q), lengthwise (L) or is rotatable by 360° (D-360). We can also supply VCBL-K1 120x50x50 Q 10.01.12.00770 and VCBL-K1 120x50x50 L 10.01.12.00769.
suction pods 10.01.12.00825.jpg

RicoCNC can offers a comprehensive selection of CNC vacuum pods designed to accommodate machines from respected manufacturers such as Homag, IMA, Biesse, and SCM.
If you're in search of the vacuum cups for your woodworking machine, don't hesitate to reach out to us. We're here to assist you.
