4006103681 4-006-10-3681 Caged Ball LM Block THK SHS35V

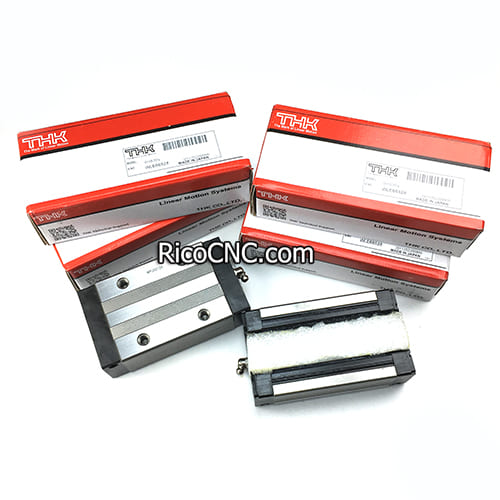

This is a caged ball Linear motion guide block, made by THK, it is SHS-V series, SHS35V. It used in HOMAG machine and part number is 4006103681 or 4-006-10-3681.

4-006-10-3681 block.jpg

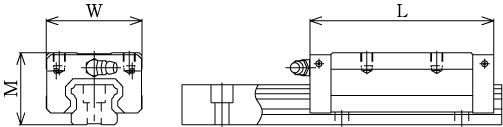

THK SHS35V specification:

Model No.Outer dimensions
HeightWidthLength
MWL
mmmmmm
SHS 35V4870122

SHS35 Series Caged Ball LM Guides.jpg

THK SHS series Types and Features

Model SHS-C

The fl ange of the LM block has tapped holes.

Can be mounted from the top or the bottom.

Used in places where the table cannot have

through holes for mounting bolts

Model SHS-LC same as SHS-C, but has a longer overall LM block length (L) and a greater rated load.

Model SHS-V

With this type, the LM block has a smaller width (W) and tapped holes.

Used in places where the space for table width is limited.

Model SHS-LV same as SHS-C, but has a longer overall LM block length (L) and a greater rated load.

Model SHS-R

The LM block has a smaller width (W) and the mounting holes are tapped.

It succeeds the height dimension of full-ball type LM Guide HSR-R.

Model SHS-LR same as SHS-C, but has a longer overall LM block length (L) and a greater rated load.

THK SHS35V.jpg

Rico can supply various THK linear guide block, also HOMAG spare parts.

THK SHS-V.jpg

Please contact us for more information!
