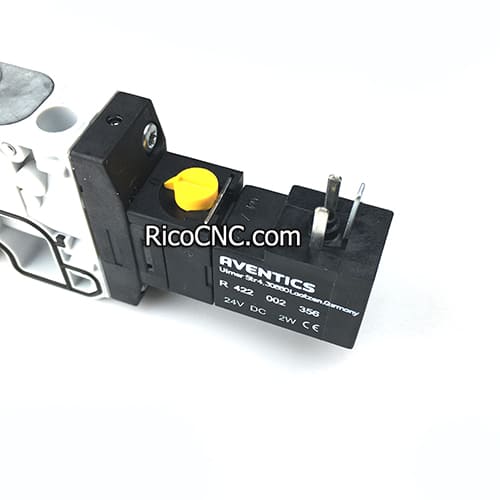

4011041280 solenoid valve.jpg

4011041280 4-011-04-1280 Electric Valve AVENTICS 0820060771 for HOMAG machine


This is a pneumatic solenoid operated air control valve, made by AVENTICS, TC08, ref number 0820060771 with 2 positions, TC08-5/2XX-DO-024DC-E-FORM_C-VTS. It used for HOMAG edge bander machine, HOMAG part number is 4-011-04-1280 or 4011041280.


4011041280 solenoid valve Specification:

ActivationElectrically
Nominal flow Qn800 l/min
Switching principle5/2
Compressed air connection outputG 1/8
Working pressure min.-0.9 bar
Working pressure max10 bar
DC operating voltage24 V
Voltage tolerance DC-1
Manual overridewith detent
Electrical connection typePlug
Electrical connection sizeISO 15217, form C
Actuating controlDouble Solenoid
Sealing principleSoft Seal
PilotExternal
Pilot valve width15 mm
Valve typeSpool valve, positive overlapping
Connection typePlate connection, Pipe connection
Blocking principlePlate principle
Can be assembled into blocksCan be assembled into blocks
Control pressure min.2 bar
Control pressure max.10 bar
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
Min. medium temperature-10 °C
Max. medium temperature50 °C

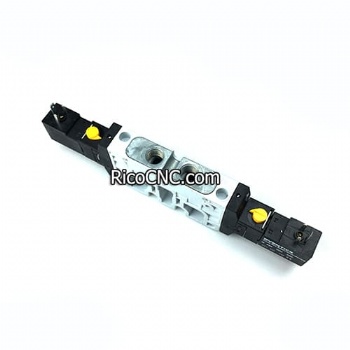

ELEK.BLOCK 5:2 G1:8 TC08.jpg

Series TC08 Aventics 0820060771 Features:

Excellent ratio of installation space and flow rate

Large selection of electrical connections

Electrical or pneumatic operated

Long service life

Adjustable coil with four 90° positions

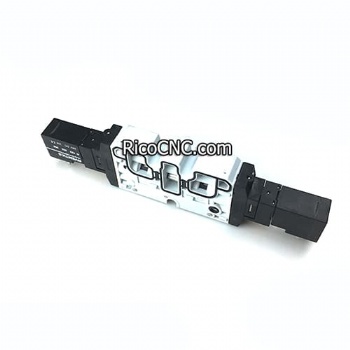

Air Control Valve TC08.jpg

Rico can supply various AVENTICS valves,

There are also other Aventics valves can be supplied here, such as:

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

4-011-04-1312 Homag 4011041312 BOSCH Rexroth Aventics 0820059051 Pneumatic Directional Valve

4-011-04-1463 Homag 4011041463 Pneumatic Valve Aventics Pneumatic Directional Valve 0820058126 for Edgebander

4-011-04-1718 / 4011041718 Electric valve 5/2 G1/4 TS15

4011041578 0820060026 Aventics Pneumatic Directional Control Valves

Aventics Pneumatic Valve 0820060076 Pneumatic Solenoid Valve TC08-5/2XX-AS-024DC-E-FORM_C-SGL

0820055101 BOSCH REXROTH AVENTICS 0 820 055 101 Pneumatic Directional Valve for Homag Holzma

BOSCH AVENTICS 0820055052 Rexroth 0-820-055-052 Pneumatic Directional Control Valve

BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines

Rexroth AVENTICS R412007269 AS3-SOV-G012-024 Directional Valve

BOSCH RVENTICS 0821002003 Pneumatic Quick Exhaust Valve For Homag

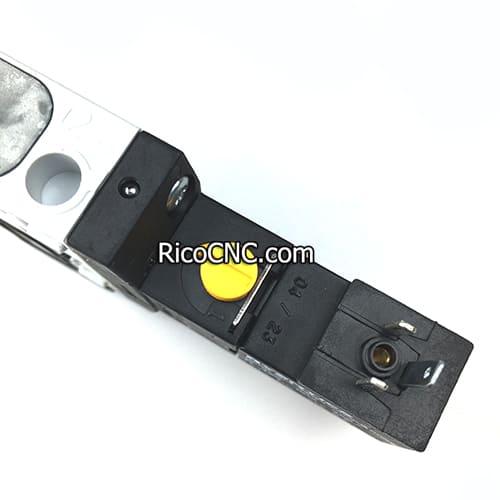

4-011-04-1280 Pneumatic valve.jpg

AVENTICS 0820060771.jpg

RicoCNC is a reliable source for CNC spare parts, woodworking machine replacements and automation parts.

Series TC08 Aventics.jpg

Please contact us for more information!
