BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines

BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines

- AVENTICS 0820055102
- 0820055102 Válvula direccional neumática Aventics
- HF03 SOL OP VAL DUAL 3/2 N.C.
- Válvulas y sistemas de válvulas, serie HF03-LG
- 0820055102 VÁLVULA ACCIONADA POR SOLENOIDE
- 0820055102 Válvula direccional 2x3/2
- Válvula direccional neumática 0820055102
- Válvula direccional 2x3/2
INQUIRY

AVENTICS 0820055102.jpg

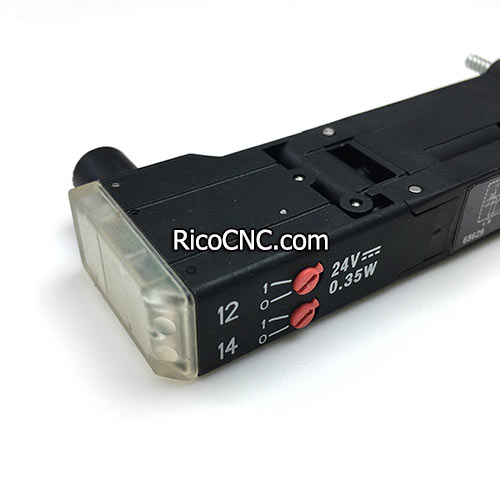

BOSCH 0820055102 Aventics Pneumatic 2x3/2-Way Directional Valve HF03 - 3/2CC - 024DC

This pneumatic valve is 0-820-055-102 AVENTICS pneumatic 2x3/2-Way directional valve. 0820055102 valve widely used in Homag machines.
AVENTICS Formerly BOSCH REXROTH Pneumatic.
2-directional valve.jpg

0820055102 Pneumatic valve specification:

Activation	Electrically
Nominal flow Qn	850 l/min
Switching principle	2x3/2
Version	NC/NC
Working pressure min.	-0.9 bar
Working pressure max	10 bar
DC operating voltage	24 V
Voltage tolerance DC	-15%/20%
Manual override	without detent
Sealing principle	Soft Seal
Pilot	External
Certificates	UR (Underwriters Laboratories)
Pilot valve width	16 mm
Valve type	Spool valve, positive overlapping
Connection type	Plate connection
Blocking principle	Single base plate principle
Control pressure min.	2.5 bar
Control pressure max.	10 bar
Min. ambient temperature	0 °C
Max. ambient temperature	50 °C
Min. medium temperature	0 °C
Max. medium temperature	50 °C
Medium	Compressed air
Max. particle size	5 µm
Oil content of compressed air min.	0 mg/m³

Rexroth 0-820-055-102 Pneumatic Directional Control Valve Features
• Modular design with up to 32 valves and 32 coils
• High flow rate with up to 850 l/min
• Pilot valve with 0.35 W per coil
• Optimized weight due to plastic base and end plates
• Direct mounting on assembly system profiles
• High connectivity through Multipol or Fieldbus connection
• Integrated fittings and all connections pointed in one direction
Valves and valve systems, HF03-LG series.jpg

0820055052/0820055051/0820055102/0820055601/0820055501/0820055101 AVENTICS BOSCH REXROTH solenoid valves are also available.
Slider Valve 2-Way Valve.jpg
If you can not find the models here, please send your details to us, we can help you find what you want!

Please contact us for more information about Homag machine parts and automation parts!
