  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
  • 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761
4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761 4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

  • • 4-011-04-1279 Homag solenoid valve
  • • Homag KAR electro-pneumovalve
  • • 4011041279 Electric group valve
  • • AVENTICS 0820060761
  • • TC08-5/2XX-AS-024DC-E-FORM_C-VTS
  • • 5/2 G1/8 TC08 single-stable
  • • REXROTH solenoid valve 0820060761
  • • VENTIL ELEK BLOCK 5/2 G1/8 TC08 MONOST VALVE
  • INQUIRY

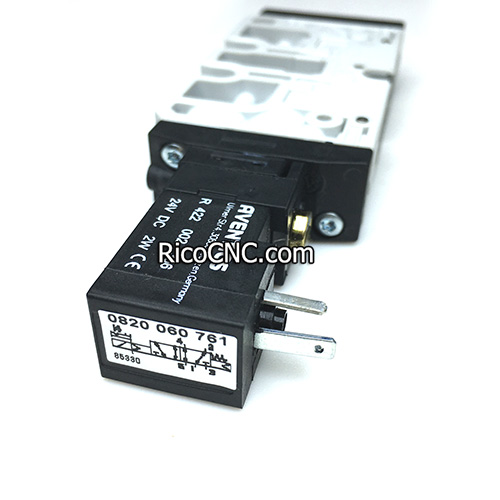

4-011-04-1279 Homag solenoid valve.jpg

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761



This REXROTH Aventics Pneumatic Directional Valve 0820060761, series number is TC08-5/2XX-AS-024DC-E-FORM_C-VTS. 1/8" Valve, 5-Port/2-Position, Single Solenoid, Air+Spring Return, 24VDC, External Pilot, DIN Form C Connection, BSPP Threads, Manifold Version.

It used for Brandt/ Homag KAR310, homag part number is 4-011-04-1279 or 4011041279.

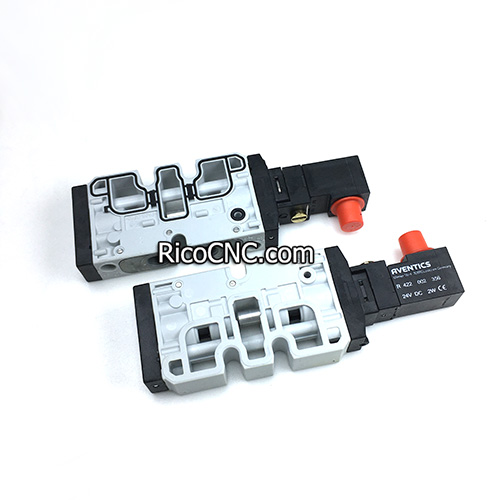

AVENTICS 0820060761.jpg

AVENTICS – 0820060761 – Valves, Series TC08 specification:

Weight

0.125 kg

Electrical interface

form C, ISO 15217

Manual override

with detent

Connection output

G 1/8

Flow Qn

800l/min

Ambient Temperature Max

50DegC

Ambient Temperature Min

-10DegC

Working Pressure Max

10 Bar

Working Pressure Min

-0.9 Bar

Voltage

24V DC

4011041279 Electric group valve.jpg

4-011-04-1279 Electric group valve Features:

• Excellent ratio of installation space and flow rate

• Large selection of electrical connections

• Electrical or pneumatic operated

• Long service life

• Adjustable coil with four 90° positions

 5:2 G1:8 TC08 single-stable.jpg

There are also other Aventics valves can be supplied here, such as:

4-011-04-1312 Homag 4011041312 BOSCH Rexroth Aventics 0820059051 Pneumatic Directional Valve

4-011-04-1463 Homag 4011041463 Pneumatic Valve Aventics Pneumatic Directional Valve 0820058126 for Edgebander

4-011-04-1718 / 4011041718 Electric valve 5/2 G1/4 TS15

4011041578 0820060026 Aventics Pneumatic Directional Control Valves

Aventics Pneumatic Valve 0820060076 Pneumatic Solenoid Valve TC08-5/2XX-AS-024DC-E-FORM_C-SGL

0820055101 BOSCH REXROTH AVENTICS 0 820 055 101 Pneumatic Directional Valve for Homag Holzma

BOSCH AVENTICS 0820055052 Rexroth 0-820-055-052 Pneumatic Directional Control Valve

BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines

Rexroth AVENTICS R412007269 AS3-SOV-G012-024 Directional Valve

BOSCH RVENTICS 0821002003 Pneumatic Quick Exhaust Valve For Homag

Homag KAR electro-pneumovalve.jpg


RicoCNC also can supply various of Homag parts, and Aventics products.
