Products > Homag Spare parts

4011040949 4-011-04-0949 Throttle Valve with Silencer 0821201102 for Homag

• 4011040949 Silencer
• 4-011-04-0949 Throttle valve
• AVENTICS 0821201102
• SOUND ABSORBER 4011040949 for Homag
• Series CH02 0821201102
• Homag Throttle valve with silencer
• 4011040949 throttle valve with silencer
• Homag valve with silencer
INQUIRY

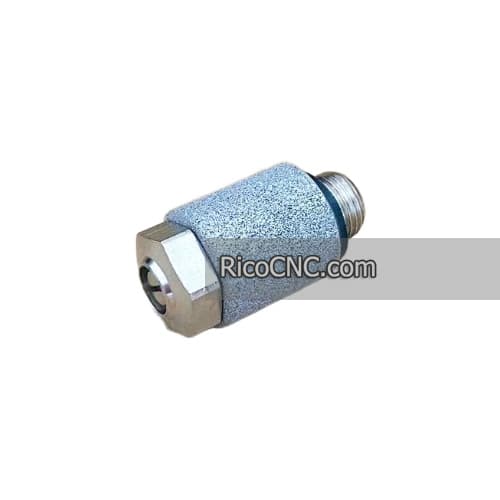

4011040949 4-011-04-0949 Throttle Valve with Silencer 0821201102 for Homag

This is a throttle valve with silencer for Homag, the Homag part number is 4011040949 4-011-04-0949. It is made by Aventics, the part number is 0821201102 Series CH02.

Specifications of 4011040949 4-011-04-0949 Throttle Valve with Silencer 0821201102 for Homag:

Working pressure min.	0 bar
Working pressure max	10 bar
Min. ambient temperature	-25 °C
Max. ambient temperature	80 °C
Min. medium temperature	-25 °C
Max. medium temperature	80 °C
Port 1	G 1/8
Type	Throttle valve with silencer
Medium	Compressed air
Compressed air connection type	External thread
Flow Qn	700 l/min
Tightening torque for silencer max.	3 Nm
Housing material	Brass
Seal material	Acrylonitrile butadiene rubber
Silencer material	Stainless Steel
