4011041703 4-011-04-1703 Throttle Check Valve R412010574 for Homag

• 4011041703 globe valve
• 4-011-04-1703 Shut-off valve
• AVENTICS R412010574
• VALVE EXHAUST AIR G3/8 D=8
• Homag FLAP CHECK VALVE
• Check-choke valve Series CC04
• THROTTLE CHECK VALVE EXHAUST AIR G3/8 D=8
• Homag spare parts
INQUIRY

4011041703 4-011-04-1703 Throttle Check Valve R412010574 for Homag

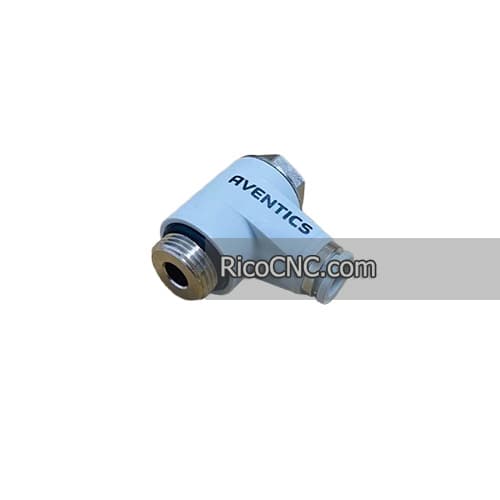

This is a throttle check valve exhaust air G3/8 D=8 for Homag Machine, the Homag part number is 4011041703 4-011-04-1703. It is made by Aventics, the model number is R412010574.

Specifications of 4011041703 4-011-04-1703 Throttle Check Valve R412010574 for Homag:

Port 1	Ø 8
Port 2	G 3/8
Throttle bore Ø	6.6 mm
direction of throttle	2 ▶ 1
Nominal flow Qn 2 to 1	860 l/min
Compressed air connection type 1	push-in fitting
Compressed air connection type 2	External thread
Throttle	Exhaust Air Throttling
Medium	Compressed air
Working pressure min.	0.5 bar
Working pressure max	10 bar
Min. ambient temperature	-10 °C
Max. ambient temperature	60 °C
Min. medium temperature	-10 °C
Max. medium temperature	60 °C
Housing material	Polyamide
Seal material	Acrylonitrile butadiene rubber
Material compressed air connection	Brass
