Homag 4035010065 4-035-01-0065 Pneumatic Cylinder For Woodworking Machine

• 4035010065 Homag cylinder
• AVENTICS 0822034201 cylinder
• Homag part number 4-035-01-0065
• AVENTICS model 0822034201
• AVENTICS mini cylinder
• Series MNI (MNI-DA-25-0010-U-01-01-1-00-000-00)
• Homag cylinder ISO 6432 MINI D=25 HUB= 10 G1/8
• Pneumatic cylinder for woodworking machine
INQUIRY

Homag 4035010065 4-035-01-0065 Pneumatic Cylinder For Woodworking Machine

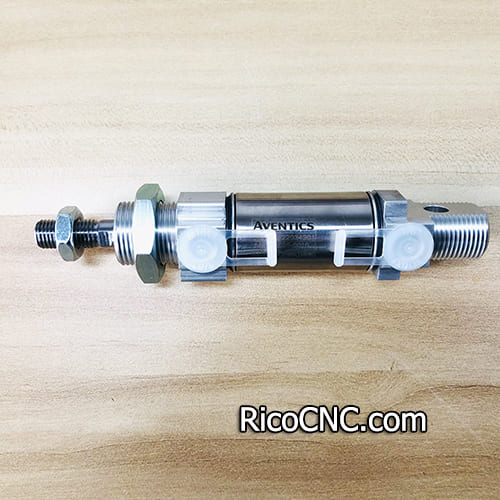

This is AVENTICS - 0822034201 - Mini cylinder, Series MNI (MNI-DA-25-0010-U-01-01-1-00-000-00). The pneumatic cylinder can be used on Homag woodworking machine. Homag part number 4035010065 or 4-035-01-0065.

Specification of Homag 4035010065 air cylinder:

Model number: Aventics 0822034201

Ambient Temperature Max (DegC): 80

Ambient Temperature Min (DegC): -25

Working Pressure Max (bar): 10

Working Pressure Min (bar): 1

Pneumatic port: G 1/8

Stroke (mm): 10

Acting principle: Double Acting

Piston diameter: 25 mm

Piston rod thread: 25

M10x1

RicoCNC can offer a range of Homag woodworking machine accessories, includes WEEKE CNC machine parts, Holzma beam saw parts, and Brandt edgebander parts.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
