Homag 4011040946 4-011-04-0946 Solenoid Valve For Woodworking Machines

Homag 4011040946 4-011-04-0946 Solenoid Valve For Woodworking Machines

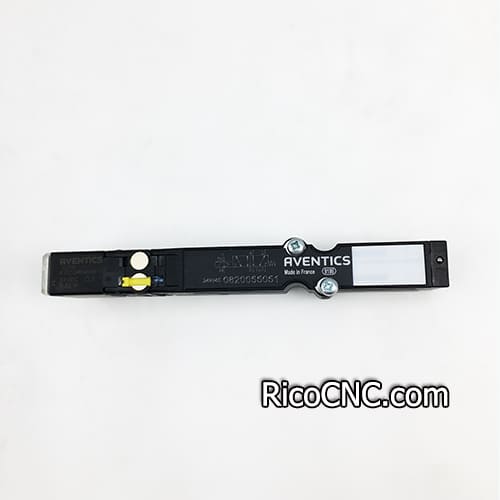

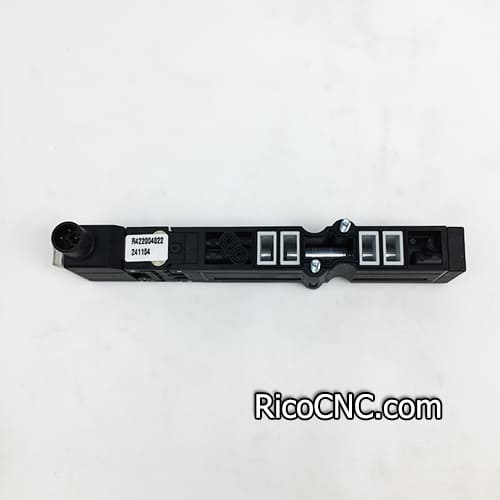

This is AVENTICS 0820055051 Solenoid Valve, Series HF03-LG, HF03 - 5/2SR - 024DC. It can be used on Homag woodworking machine. Homag part number is 4011040946 or 4-011-04-0946.

Specification of AVENTICS 0820055051 Directional Valve

Model number: Aventics 0820055051

Homag part number: 4011040946

Activation Electrically

Switching principle5/2, with spring return

Actuating controlSingle Solenoid

Manual override with detent

Pilot External

Nominal flow Qn 850 l/min

Min. working pressure-0.9 bar

Max. working pressure10 bar

Operational voltage 24 V DC

Voltage tolerance DC-15% / +20%

Protection class with connectionIP65

Reverse polarity protection Protected against polarity reversal

Sealing principle16 mm, Soft seal

Power consumption DC0.35 W

Duty cycle100 %

Typ. switch-on time16 ms

Typ. switch-off time23 ms

Certificates UR (Underwriters Laboratories) ‒ pilot valve only

Min. ambient temperature 0 °C

Max. ambient temperature 50 °C

Weight 0.082 kg

Housing material Polyamide fiber-glass reinforced

RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.

If you are looking for woodworking machine parts suppliers, welcome to contact us.
