4011041636 4-011-04-1636 Homag Directional Control Valve 5634410100

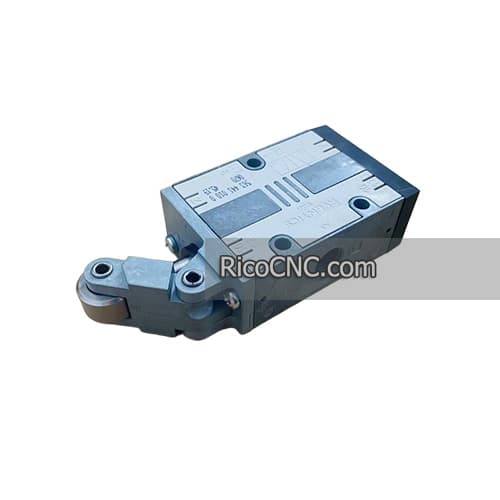

This is a directional control valve for Homag machine, the Homag part number is 4011041636 4-011-04-1636. This valve is a spool valve made by Aventics, 3/2-directional valve Series CD07, model number is 5634410100 CD07-3/2NC-SR-R-G014-G014-S.

4011041636 4-011-04-1636 Homag Directional Control Valve 5634410100 specification:

Activation	Mechanical
Frame size	CD07
Valve type	Spool valve, positive overlapping
Switching principle	3/2, with spring return
Valve function	NC/NO
Actuating control	Single Solenoid
Actuating element	Roller
Sealing principle	soft seal
Compressed air connection	G 1/4
Compressed air connection type	Internal thread
Compressed air connection input	G 1/4
Compressed air connection output	G 1/4
Compressed air connection, exhaust	G 1/4
Nominal flow Qn	1400 l/min
Working pressure min.	-0.95 bar
Working pressure max	10 bar
actuating force min.	40 N
Min. ambient temperature	-25 °C
Max. ambient temperature	80 °C
Min. medium temperature	-25 °C
Max. medium temperature	80 °C
Medium	Compressed air
