Homag 4-017-05-0038 4017050038 Automatic Lubricator For X Axis

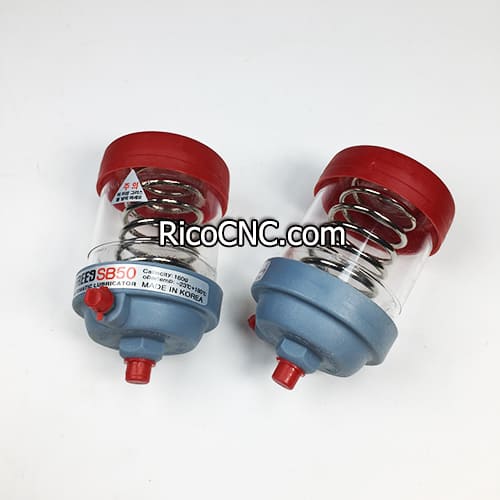

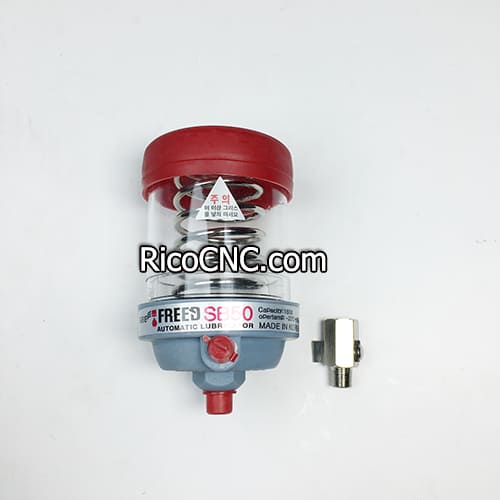

This is FREED SB-50 automatic lubricator. It is used on Homag woodworking machines for X axis. Homag part number of X-axis lubrication cup is 4017050038 or 4-017-05-0038.
Automatic lubricator FREED SB-50.jpg

Automatic Lubricator can be used on many machine. It is used to protect the bearing in sea water & dust.

Specification of Homag 4017050038 spring feed lubricator:
Capacity: 160g
Opertemp: -23°C+180%
MADE IN KOREA
FREED SB50
Automatic Lubricator
Capacity: 180g
lubrication cup Homag.jpg

FEATURES of Homag 4017050038 SB-50 lubricator
    •    Automatically lubricates in a uniform quantity.
    •    Significantly reduces labor costs.
    •    Protects workers from hazardous situations.
    •    Provides effective lubrication even in dusty, wet, or outdoor environments.
    •    Greatly extends the lifespan of bearings.
    •    No need for frequent inspections after installation.
    •    Allows visual monitoring of grease levels through the transparent reservoir.
SB-50 lubricator.jpg

FUNCTION of FREED SB-50 spring feed lubricator
The FREED cup is filled with grease. A specially engineered spring mechanism ensures consistent grease dispensing from a full reservoir to an empty one. This constant spring pressure minimizes the risk of over-lubrication or under-lubrication.

The system automatically supplies grease in the appropriate quantity, adapting to the internal conditions of the bearing and its rotational speed.
X-axis lubrication cup Homag.jpg

RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.
