Homag 4035012208 4-035-01-2208 AVENTICS 0822396205 Cylinder

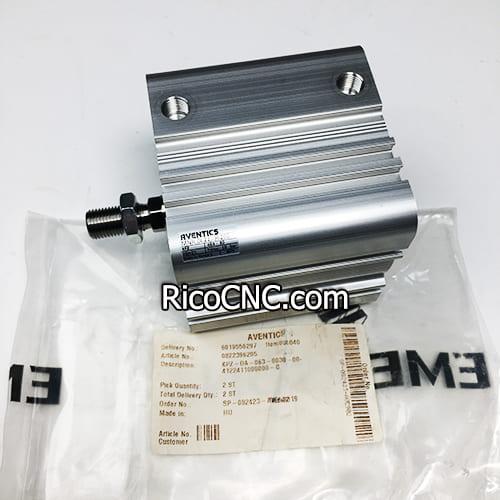

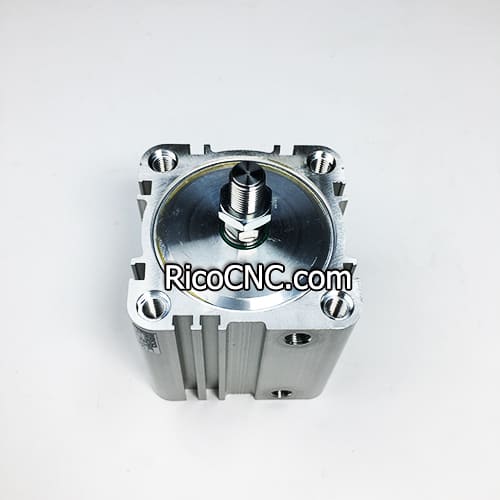

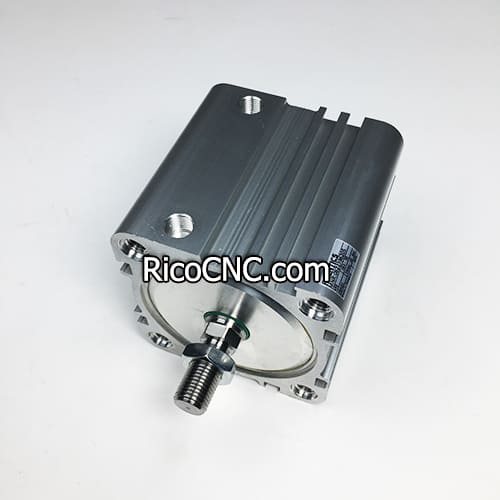

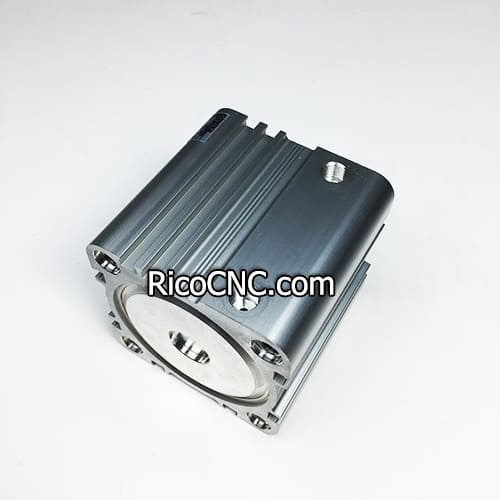

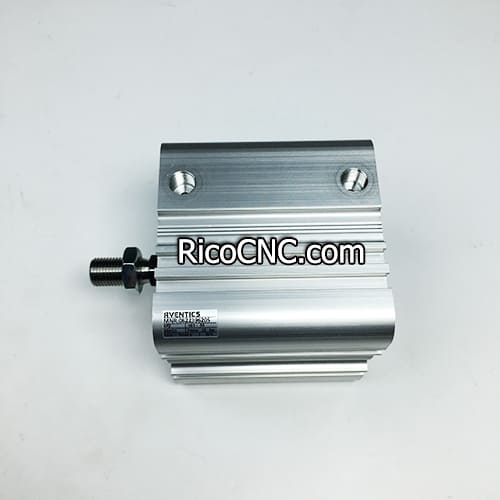

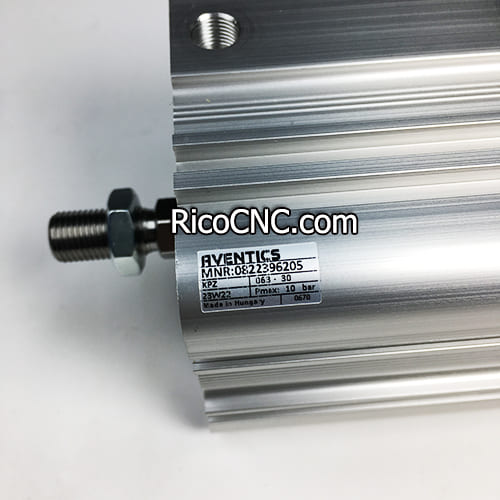

This is 0822396205 Aventics pneumatic cylinder KPZ D63 H30 4122 411 000 00 2 0 2. It can be used on Homag woodworking machines. Homag part number is 4035012208 or 4-035-01-2208.
A range of Aventics pneumatic cylinder for Homag machine can be supplied here:
0822123005
0822406340
0822032206
0822350003
0822010621
0822010455
Features of 4-035-01-2208 Homag pneumatic cylinder:
According to NFE 49-004
Ø 16 mm ... 100 mm
Max. stroke: 500 mm
With integrated sensor slot
Optional: through (hollow) piston rod, non-rotating (via piston rod or front plate), multi-position variant, heat resistant, ATEX
Specifications of HOMAG 4035012208 air cylinder:
Manufacturer | Aventics |
Manufacturer Part Number | 0822396205 |
Standards | NFE 49004 |
Piston Ø | 63 mm |
Stroke | 30 mm |
Functional principle | Double-acting |
Cushioning | Elastic cushioning |
Magnetic piston | Piston with magnet |
Environmental requirements | Industry standard, ATEX optional |
Certificates | ATEX optional |
Piston rod | single |
Scraper | Standard industrial scraper |
Pressure for determining piston forces | 6,3 bar |
Retracting piston force | 1837 N |
Extracting piston force | 1964 N |
Min. ambient temperature | -20 °C |
Max. ambient temperature | 80 °C |
Working pressure min. | 0.6 bar |
Working pressure max | 10 bar |
Ports | G 1/8 |
Piston rod thread | M12x1,25 |
Impact energy | 1.3 J |
Stroke max. | 300 mm |
Medium | Compressed air |
Min. medium temperature | -20 °C |
Max. medium temperature | 80 °C |
Max. particle size | 50 µm |
RicoCNC carries a wide range of Homag Weeke CNC machine parts, Holzma beam saw parts, and Homag Brandt edgebander parts.
If you are looking for Homag woodworking machine parts, welcome to contact us!
