4011041315 4-011-04-1315 Homag Edge Bander Single Valve 0820059751

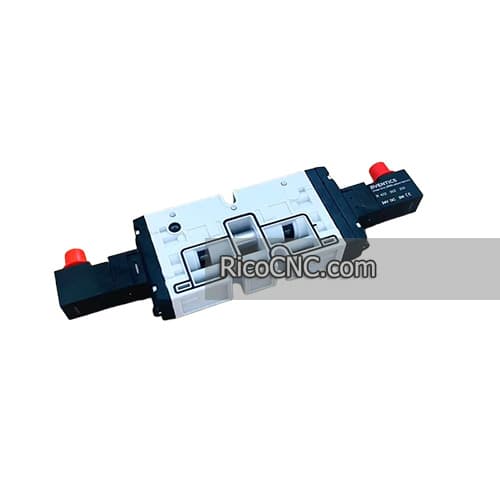

This is a single directional valve for Homag Edge bander machine, the Homag part number is 4011041315 4-011-04-1315. It is a electric valve block 5/3 G1/4 Aventics series TC15, the mode number is 0820059751, type code: TC15-5/3CC-DO-024DC-E-FORM_C-VTS.

4011041315 4-011-04-1315 Homag Edge Bander Single Valve 0820059751 specification:

Activation	Electrically
Valve function	Closed Center
Actuating control	Double Solenoid
Manual override	with detent
Pilot	External
Nominal flow Qn	1300 l/min
Compressed air connection output	G 1/4
Min. working pressure	-0.9 bar
Max. working pressure	10 bar
Operational↩voltage	24 V DC
Voltage tolerance DC	-1
Electrical connection type	Plug
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Housing material	Polyamide fiber-glass reinforced
