4011041579 Directional Valve 4-011-04-1579 AVENTICS Electric valve 0820060501 For Edge Bander Machine

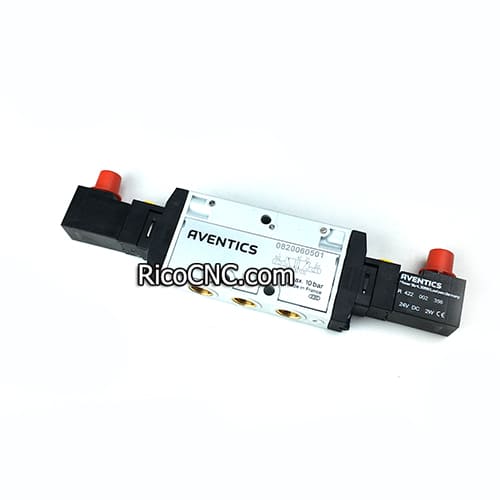

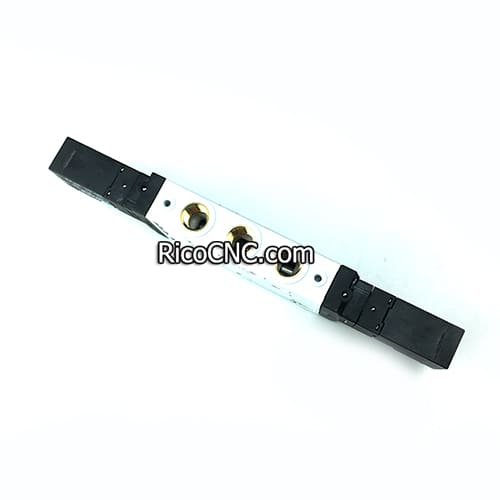

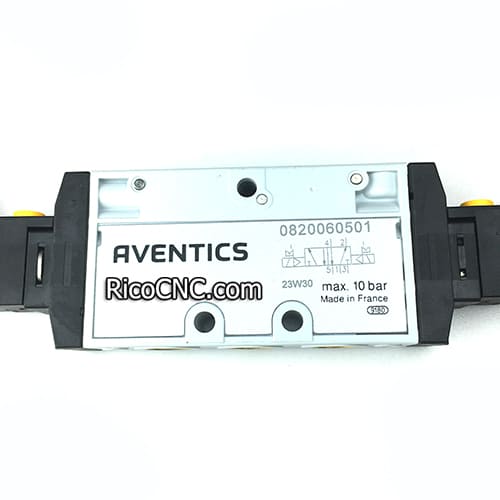

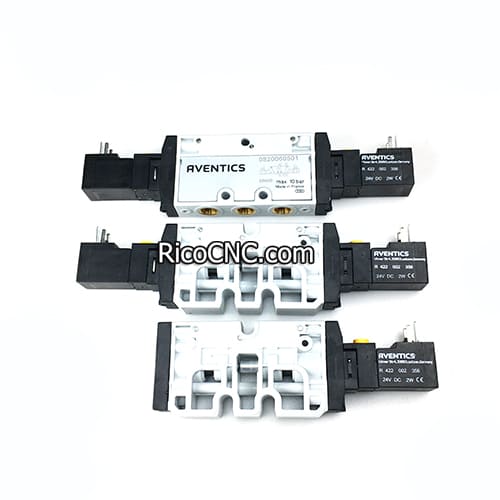

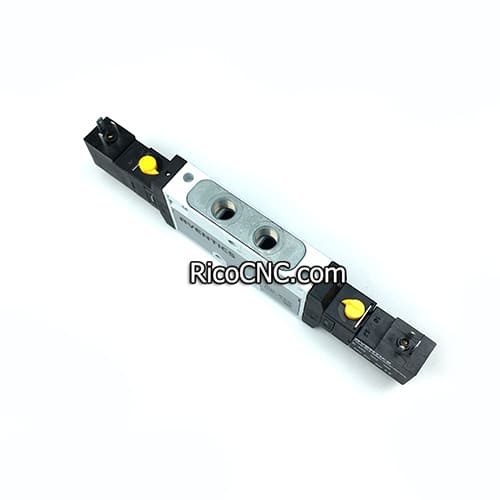

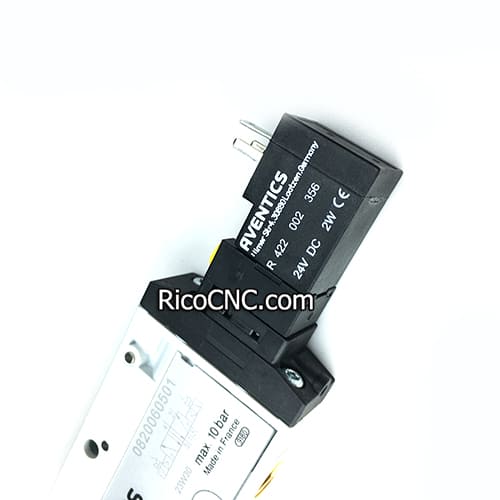

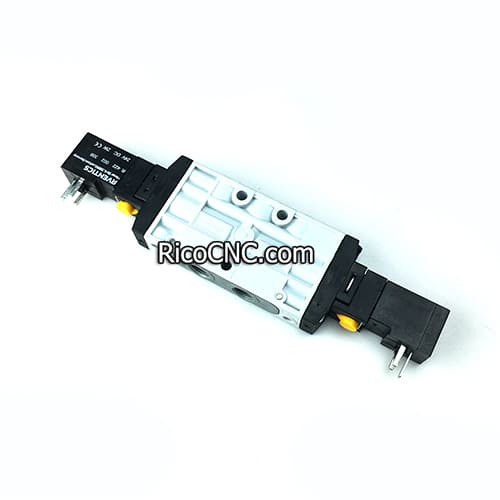

This is a directional electric valve for Edge bander machine, such as Brandt Weeke, it is 5/2 G1/8 series TC08, made by AVENTICS, model number is 0820060501, series number is TC08-5/2XX-DO-024DC-I-FORM_C-SG. HOMAG part number is 4-011-04-1579 or 4011041579.

0820060501 Aventics Valves.jpg

Aventics Valves TC08 G1/8 Valve is a large flow from a 17mm wide body of 800 l/min for all 5 / 2 functions and 700 l/min for all 5 / 3 functions. This range of valves can also be mounted together on a 'P' stip manifold.

Edgebander valve.jpg

Aventics Series TC08 valve features:

Spool valve, Non Overlapping

Form 'C' or M8 electrical connection options

External Pilot option allowing vacuum applications

Manual override with detent

Maximum partivle size 5μm

Oil content of compressed air 0 → 5mg/m3

100% duty cycle

Polyamide glass-fibre reinforced body

Aventics Valves and Valve Systems.jpg

EMERSON AVENTICS 5/2 Pneumatic Solenoid Valve 0820060501 Aventics Pneumatic Directional Control Valves material:

Housing Polyamide, fiber-glass reinforced
Seals Acrylonitrile butadiene rubber Polyurethane
Front plate Polyamide, fiber-glass reinforced
Threaded bushing Brass Die cast zinc, nickel-plated chrome-plated

Electric valve 5:2 G1:8 TC08.jpg
