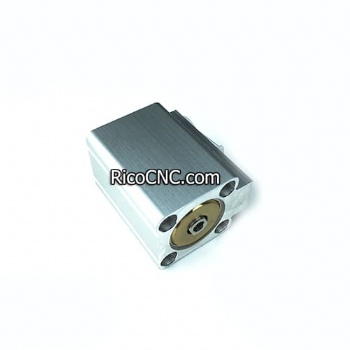

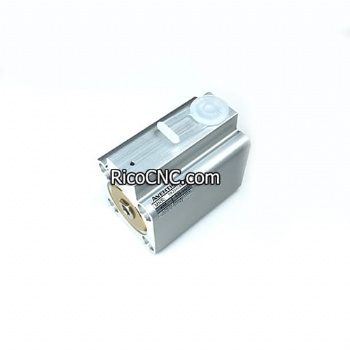

4035020067 4-035-02-0067 Homag Cylinder AVENTICS Series KHZ Short Stroke Cylinder
This is a compact short stroke cylinder, made by AVENTICS. It is Stroke 25mm. Bore 25mm, series KHZ, model number is 0822406332, used for HOMAG machine, HOMAG part number is 4-035-02-0067 or 4035020067.
AVENTICS 0822406332 Short-stroke cylinder Series KHZ
- Ø 8-100 mm
- Ports M5 G 1/8 G 1/4
- Single-acting, retracted without pressure
- Cushioning elastic
- Piston rod Internal thread
4035020067 4-035-02-0067 Cylinder KHZ D= 25 HUB= 25 G1/8 technical details:
Compressed air connection Internal thread
Ambient temperature min./max. -25 ... 80 °C
Medium temperature min./max. -25 ... 80 °C
Medium Compressed air
Max. particle size 50 µm
Oil content of compressed air 0 ... 5 mg/m³
Pressure for determining piston forces 6.3 bar
0822406332 Aventics Pneumatic Cylinder Material:
| Cylinder tube | Aluminum, anodized |
| Piston rod | Stainless steel |
| Piston | Nitrile rubber |
| Front cover | Brass Aluminum |
| End cover | Aluminum |
RicoCNC also can supply other models such as:
4-035-01-2780 Compact Cylinder 4035012780 Air Cylinder Festo ADN-25-5-I-P-A for Homag
4-035-01-0006 Homag 4035010006 Pneumatic Aventics 0822121008
Aventics 0822123005 Profile Air Cylinder ISO 15552 Pneumatic Cylinder
Homag 4-035-01-0788 BOSCH REXROTH 0822010511 AVENTICS
4-035-01-0011 4035010011 Double-acting ISO 15552 PRA Aventics 0822122004
etc.
