HOMAG 4011041354 4-011-04-1354 Pressure Regulator 0821302078

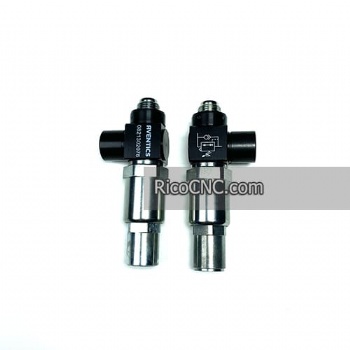

This is a pressure regulator, energy saving valve for HOMAG machine, the HOMAG part number is 4011041354 4-011-04-1354. It is AVENTICS brands, the part number is 0821302078.
Specification of 4011041354 pressure valve:
| Type | Poppet valve |
| Compressed air connection input | G 1/8 |
| Compressed air connection type input | Internal thread |
| Compressed air connection output | G 1/8 |
| Compressed air connection type output | External thread |
| Working pressure min. | 1 bar |
| Working pressure max | 16 bar |
| Regulation range min. | 1 bar |
| Regulation range max. | 8 bar |
| Min. ambient temperature | -10 °C |
| Max. ambient temperature | 70 °C |
| Min. medium temperature | -10 °C |
| Max. medium temperature | 70 °C |
RicoCNC also can supply other models such as:
4-035-01-2780 Compact Cylinder 4035012780 Air Cylinder Festo ADN-25-5-I-P-A for Homag
4-035-01-0006 Homag 4035010006 Pneumatic Aventics 0822121008
Aventics 0822123005 Profile Air Cylinder ISO 15552 Pneumatic Cylinder
Homag 4-035-01-0788 BOSCH REXROTH 0822010511 AVENTICS
4-035-01-0011 4035010011 Double-acting ISO 15552 PRA Aventics 0822122004
4035012299 4-035-01-2299 Cylinder ISO6432 HUB280 Aventics 0822233081 for HOMAG Edge Banding Machine
4035020067 4-035-02-0067 Homag Cylinder AVENTICS Series KHZ Short Stroke Cylinder
Homag 4035011491 4-035-01-1491 Aventics Pneumatic Cylinder
Homag 4035012051 4-035-01-2051 Aventics R412006846 Pneumatic Cylinder
etc.
