HOMAG 4035010689 4-035-01-0689 Short Stroke Cylinder Aventics KHZ Series

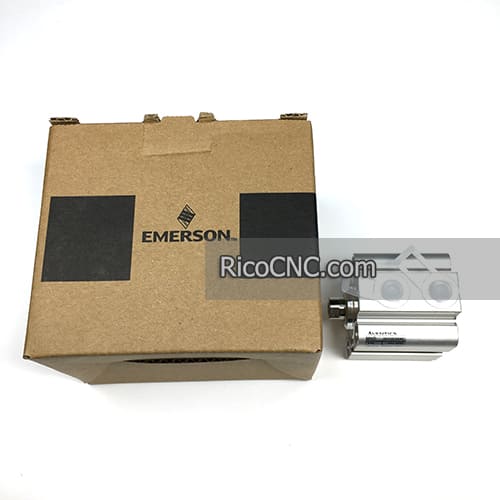

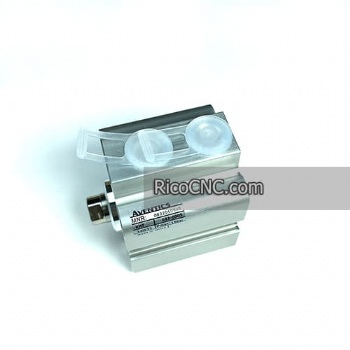

This is a short stroke cylinder, made by AVENTICS, use for HOMAG machine, the HOMAG part number is 4035010689 4-035-01-0689. It is AVENTICS KHZ series KHZ-DA-032-0005-M, the part number is 0822010640.
Specification of HOMAG 4035010689 SHORT STROKE CYLINDER KHZ D= 32 STROKE= 05 G1/8:
| Piston Ø | 32 mm |
| Stroke | 5 mm |
| Functional principle | Double-acting |
| Cushioning | Elastic cushioning |
| Magnetic piston | Piston with magnet |
| Environmental requirements | Industry standard |
| Piston rod | single |
| Scraper | Standard industrial scraper |
| Pressure for determining piston forces | 6,3 bar |
| Retracting piston force | 435 N |
| Extracting piston force | 507 N |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 80 °C |
| Working pressure min. | 0.6 bar |
| Working pressure max | 10 bar |
| Ports | G 1/8 |
| Piston rod thread | M6 |
| Medium | Compressed air |
| Min. medium temperature | -25 °C |
| Max. medium temperature | 80 °C |
