4-014-03-0318 Left and Right 4-014-03-0317 R1 Profile Cutters for Homag Brandt Edgebander

• Homag Scraper inserts 4-014-03-0318 R1 Left
• Homag Scraper inserts 4-014-03-0317 R1 Right
• 1mm radius profile knives for Brandt
• Profile cutters For Homag Brandt
• Carbide Insert 22.32x14x2 R1
• Radius trimmer knives for Homag
• Insert carbide RH R=1 DFC tooling
• Carbide Insert LH R=1mm
INQUIRY

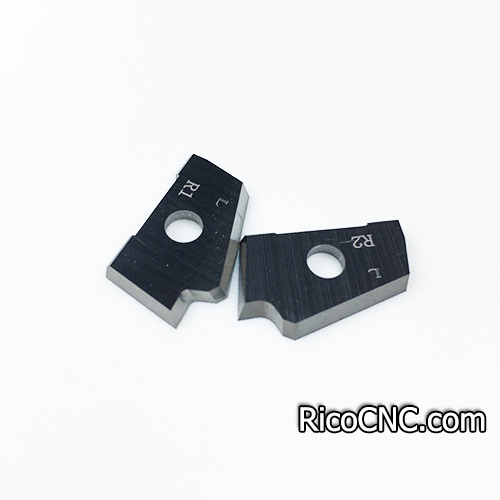

22.3x14x2 R1 scraper knives.jpg

4-014-03-0318 Left and Right 4-014-03-0317 R1 Profile Cutters for Homag Brandt Edgebander

This blade is Homag 4-014-03-0317 right and 4-014-03-0318 left carbide radius profile knives R1 HM 22.32x14x1 for Homag Brandt edgebanding machine.

They are the same quality profile cutters as Leuco 185239 and 185238

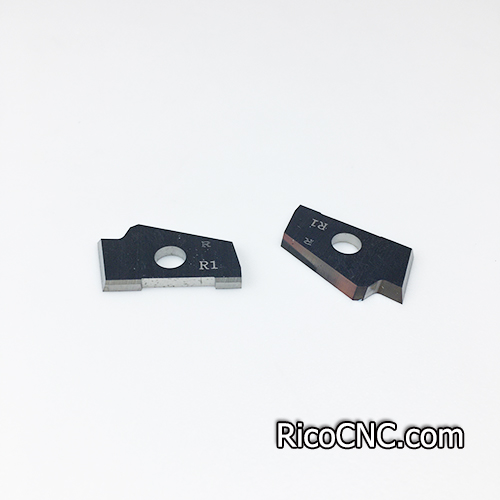

Homag 1mm Profile Cutters.jpg

Brandt edge bander radius trimmer knives with 1mm radius groove parameters:

Length:	22.32 mm
Width:	14 mm
Radius:	1 mm
Thickness:	2 mm
Hole diameter	5mm
Direction	Left and right
Material:	High-quality tungsten carbide
Leuco number R	185239
Leuco number L	185238
Homag part number R	4-014-03-0317
Homag part number L	4-014-03-0318

Other scraper blades are also available:
4-014-03-0311 / 4014030311 Left replacement Insert R2 HM 22.32x14x2
4-014-03-0306 / 4014030306 R2 HM 22.32x14x2 right insert cutters
4-014-03-0309/4014030309 carbide insert LH R=3MM 22.32x14x2
homag radius profile knives.jpg
A wide range of Homag Brandt edgebanding machine parts are supplied here, if any need of rubber pressure wheels, trackpads, cloth buffing wheels, trimming cutters, side support roller, heater, PCD pre milling cutter, welcome to contact us.
