4035010128 4-035-01-0128 Profile Cylinder AVENTICS 0822120008

  • • 4035010128 Cylinder
  • • HOMAG 4-035-01-0128
  • • AVENTICS 0822120008
  • • CYLINDER ISO 15552 PRA D=32 STROKE=250 G1/8
  • • 0822120008 Aventics Air Cylinders
  • • Profile cylinder ISO 15552
  • • PRA-DA-032-0250-0-2-2-1-1-1-BAS
  • • ISO Profile-Style Cylinder
  • INQUIRY

4035010128 Cylinder.jpg

4035010128 4-035-01-0128 Profile Cylinder AVENTICS 0822120008

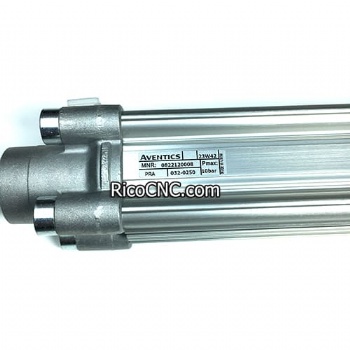

This is a profile cylinder made by AVENTICS, the part number is 0822120008, PRA-DA-032-0250-0-2-2-1-1-1-BAS. It is a ISO Profile-Style Cylinder, 32mm Bore x 250mm Stroke, Metric Threads, Cushions, Magnet Piston, Single Rod, Male Thread, PUR Seals, PUR Fixed Scraper, Basic.

AVENTICS 0822120008.jpg

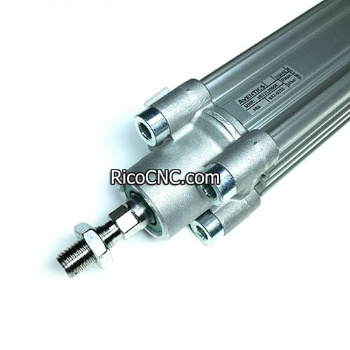

This cylinder is 15552 PRA D=32 STROKE=250 G1/8 for HOMAG machine, the HOMAG part number is 4035010128 or 4-035-01-0128.

CYLINDER ISO 15552.jpg

AVENTICS 0822120008 cylinder specification:


Weight1.102 kg
Cushioningpneumatically
Pneumatic portG 1/8
Stroke250 mm
Piston diameter32 mm
Piston rod thread25, M10x1
Ambient Temperature Max80DegC
Ambient Temperature Min-20DegC
Acting principleDouble Acting
Working Pressure Max10 Bar
Working Pressure Min1.5 Bar

HOMAG 4-035-01-0128 .jpg


RicoCNC is a reliable source for woodworking machine parts and tools, such as CNC tool holders and clips, CNC router bits, foam milling tools, CNC wood lathe knives, edge bander accessoriesCNC vacuum pods, etc for Biesse, Homag, Weeke, and other common brands in CNC industries. We own many years of experience in CNC industries and have shipped CNC machine parts to over 100 countries.


Please contact us for more information!
