NACHI SA-G01-C5-R-C1-30 Solenoid Valve Wet Type Directional Control Valve SAG01C5RC130

This is a wet type solenoid valve made from NACHI, it is SA series solenoid valve, the model number is SA-G01-C5-R-C1-30 or SAG01C5RC130.

NACHI SA-G01-C5-R-C1-30 speicification:

Type	Electromagnetic Valve Main Body	Max. Operating Pressure	35MPa
Max. Flow(ℓ/min)	100	Position Format of Neutral Position	[All Ports Open Type] All port close
Power Supply	AC100V	Operation Method	Springs Center
Solenoid Type	Double	Hydraulic Oil	Mineral Oil Type
Application	Single Item	Connection Method	Subplate (Not Included)
Switching Type	3 Position Type	Nominal Diameter	01 size

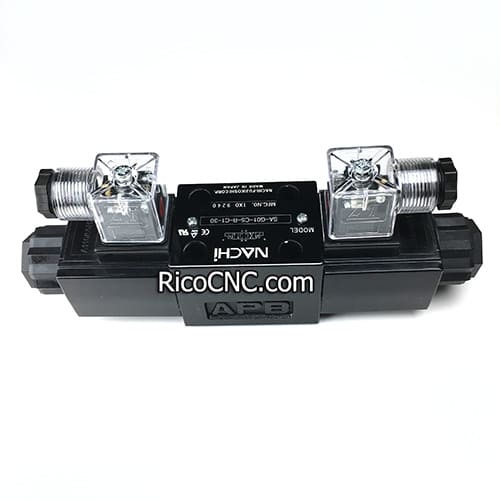

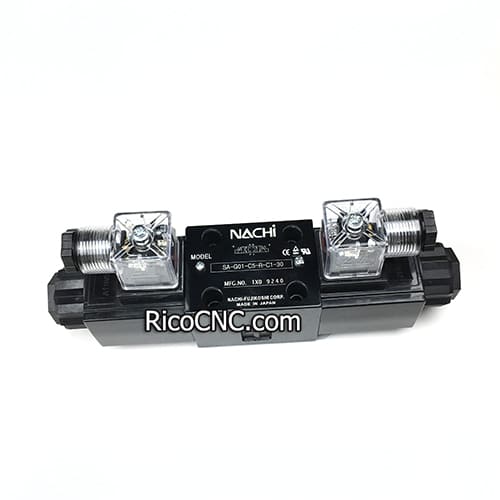

NACHI SA-G01-C5-R-C1-30.jpg

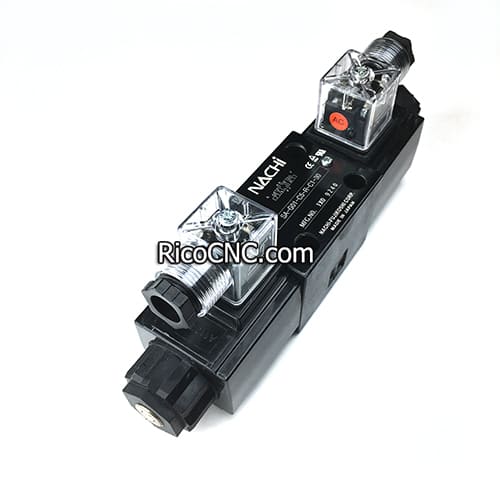

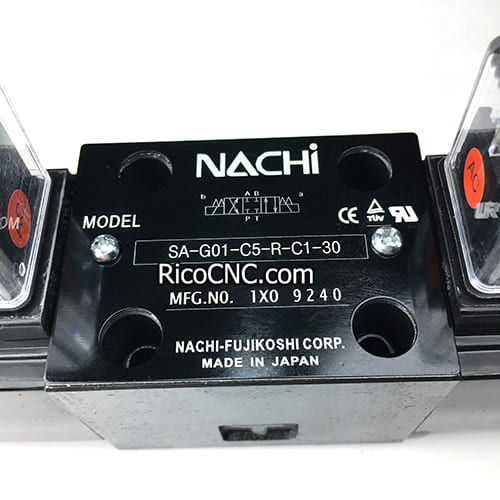

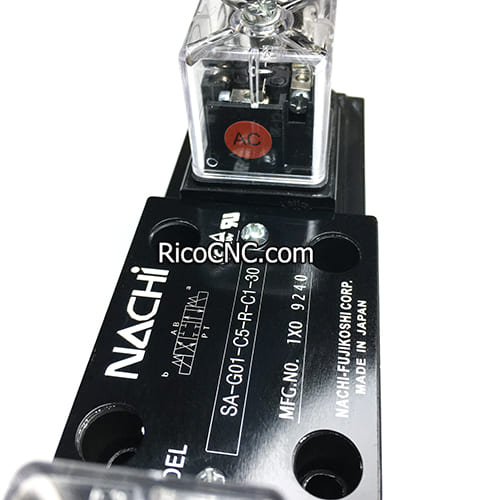

Nachi SAG01C5RC130.jpg

Nachi SAG01C5RC130 features:

· Extremely long service lifespan.

· The armature of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long lifespan.

· Low switching noise.

· The wet-type solenoid valve provides very low armature switching noise, ensuring quiet operation.

· Shockless.

· The switching-speed adjustment mechanism enables direct-acting type shockless operation (Option: F).

· Reduces surge voltage.

· Sparks and surge voltages between contacts generated when switching solenoids are eliminated, enabling stable switching (option: G).

· Easy coil replacement. Since the coil is a DIN connector system, the coil can be replaced with single-action.

· Even conventional valves are easy to install due to wide compatibility, and when combined with modular valves, the entire device can be made even more compact.

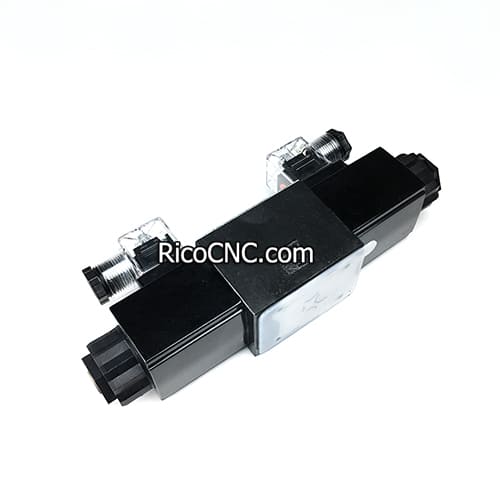

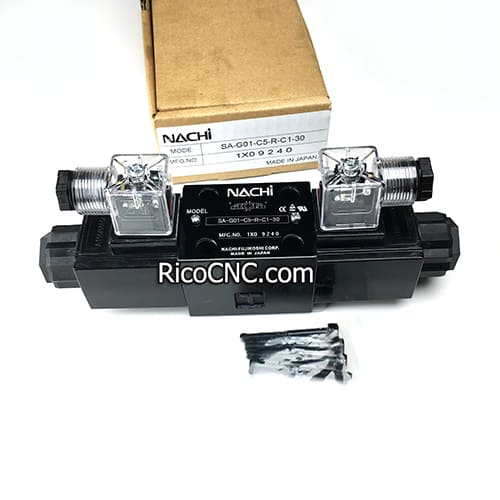

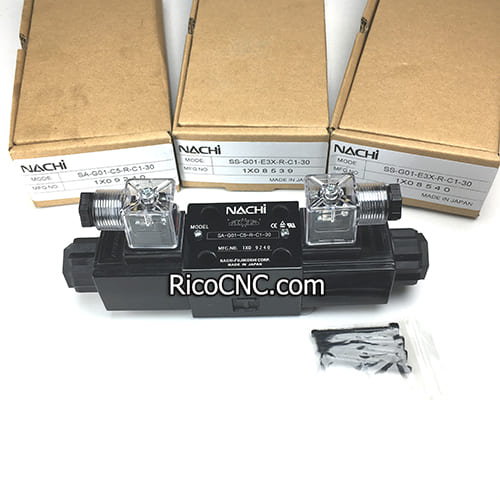

Wet Type Solenoid Valve.jpg
