4006100071 4-006-10-0071 Angular Contact Ball Bearing INA NKIA 5902

4006100071 4-006-10-0071 Angular Contact Ball Bearing INA NKIA 5902

• 4006100071 roller bearing
• 4-006-10-0071 angular ball bearing
• NKIA 5902
• INA NKIA5902
• INA NKIA5902-XL Needle Roller
• Angular Contact Ball Bearing
• Dimensions: 15mm X 28mm X 18mm-nkia 5902
• INA NKIA 5902 Needle Bearing
INQUIRY

4006100071 roller bearing.jpg

4006100071 4-006-10-0071 Angular Contact Ball Bearing INA NKIA 5902

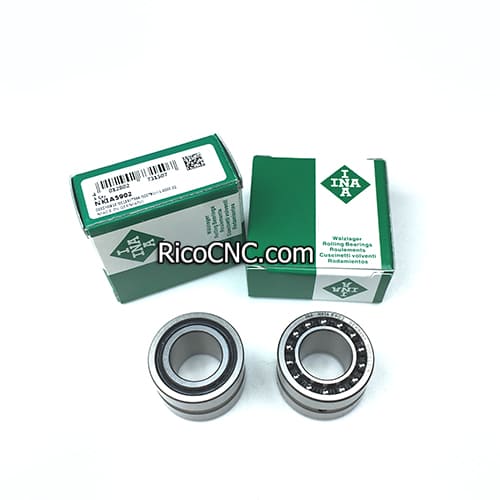

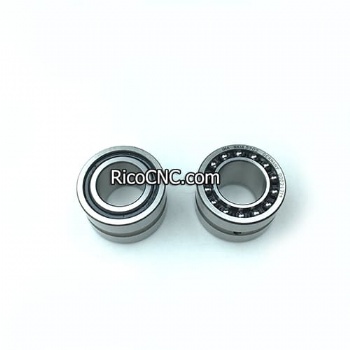

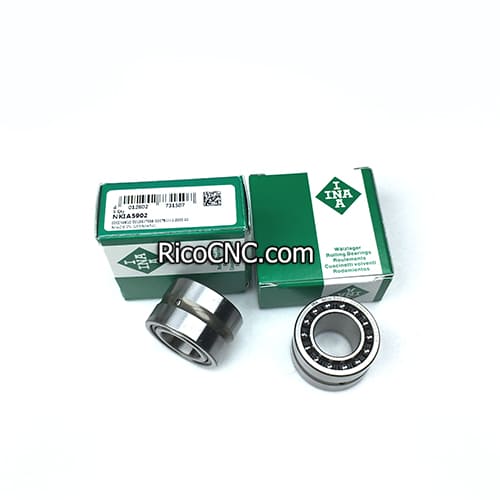

This is a combination roller bearing needle roller/angular contact ball, 15 mm Bore, 28 mm OD, 18 mm Width, made from INA, part number is NKIA5902 or NKIA 5902. It is used for HOMAG edge bander machine, the Homag part number is 4-006-10-0071 or 4006100071.

4-006-10-0071 angular ball bearing.jpg

4006100071 Needle Roller Ball Bearing NKIA 5902 Specifications:

Bore diameter	15 mm
Outer diameter	28 mm
Overall width	18 mm
Bore type	Cylindrical
Cage material	Steel
Precision class	Class normal (P0)
Axial Dynamic Load Capacity	530 lbf
Axial Static Load Capacity	620 lbf
Fillet Radius	0.3 mm
Lubrication Type	Grease, Oil
Operating Temperature Range	-20 to +120 °C
Radial Dynamic Load Capacity	2380 lbf
Radial Static Load Capacity	3050 lbf
Type Of Bearing	Needle Roller/Angular Contact Ball

INA NKIA5902.jpg NKIA 5902.jpg

INA NKIA 5902 needle roller bearing features:

• Accommodate radial loads and axial loads in one direction

• High load carrying capacity

• High-speed capability

• Low cross section

• Separable design

Angular Contact Ball Bearing.jpg

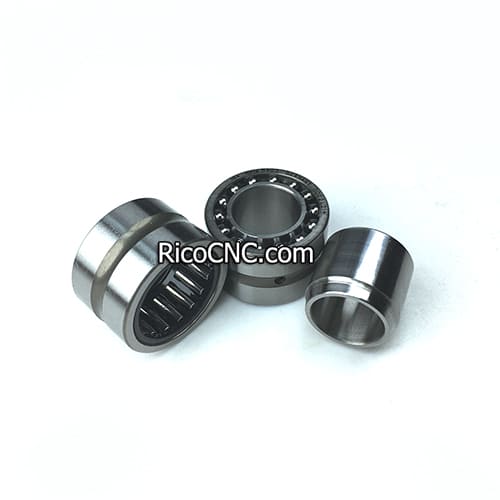

These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in one direction. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.

INA NKIA5902-XL Needle Roller.jpg
