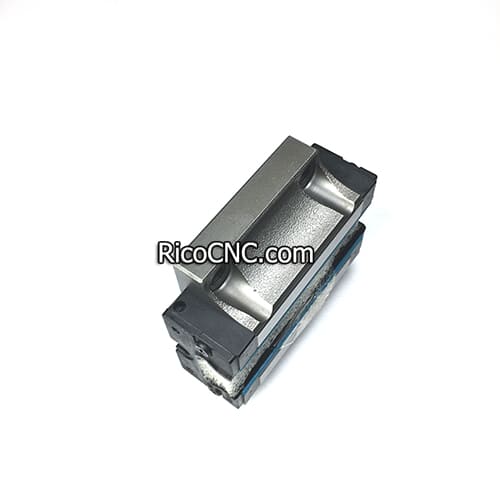

TBI H25FN Straight rail slider.jpg

TBI Straight Rail Linear Guide Block H25FN


This is a linear guide block from TBI, it is TR series, size 25, the model number is H25FN or TRH25FN.

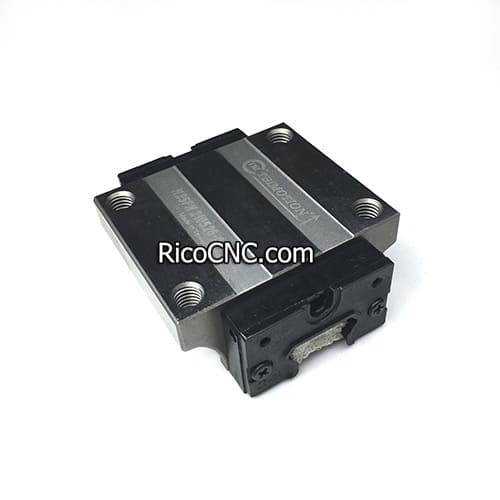

H25FN Linear Guide Block.jpg

TBI TR series Linear guide block features:

Smooth Movement

TBI MOTION The circulation system of TBI Linear Guide Block designed to perform smooth movement.

High Stability

TBI MOTION Linear Guide block designed under TBI’s exclusive patent can increase depth of material to improve the strength capacity and prevent from deflection as high stability.

High Durability

TBI MOTION The exclusive contact point design promotes high rigidity. Moreover, self-aligning balances load rating in all directions. This design also improves performance in running accuracy and service life of the Linear Guide.

Easy Installation with Interchangeability

TBI MOTION Linear Guide by TBI is easy for installation even without fixture. The design of seal is combinable either for side seal or inner seal to save material.

Application

Machine tool, Industrial machinery, Electronic Application etc.

TAIWAN TBI Slider block H25FN.jpg

Linear guide motion TRH25FN specifications:

Item #H25FN
SeriesTR series
Model Size25
Block TypeStandard
Height of Assembly TypeHigh-Assembly
Flange TypeFlange type
Length of blockNoraml  type
Load TypeLight load of Z0
Block MountingMounting from Top
Preload ClassZF- Slight clearance
Z0- No Preload
Z1- Light Preload
Precision codeN (normall)
Dust ProtectionXN : Strong Bottom Seal+Strong Double-lip end seals

TBI Motion H25FN Linear Guide Block.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
