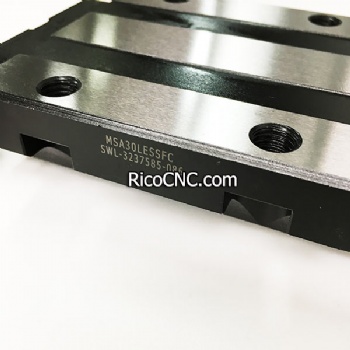

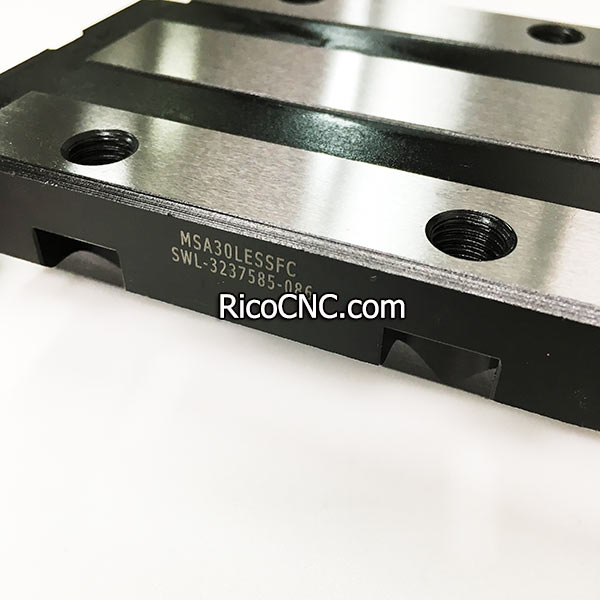

PMI MSA30LESSFC Linear Guideways Runner Block MSA30LE Linear Bearing

The linear guideways runner is PMI MSA30LESSFC slider bearing, size 28x90x42mm. Standard bearing steel PMI MSA 30 LE SS FCN PMI linear guide, widely used in linear motion system for CNC machines such as CNC router, CNC milling machine, CNC laser, CNC plasma, etc.
PMI MSA30LESSFC.jpg

All dimensions are same as MSA-E except the length is longer, which makes it more rigid.
Number of scroll columns: Double row
Rolling bearing housing material: Bearing steel
PMI Linear Guideways Runner Block MSA30LE-SSFCN.jpg

MSA30LESSFC Linear Block Characteristics:
• High Rigidity, Four-way Equal Load    • Self Alignment Capability
• Smooth Movement with Low Noise    • Interchangeability
PMI Linear Guide Slide Block.jpg


More PMI linear bearing models can be found in RicoCNC:

Model No.

External   dimension

Carriage   dimension

H

W

L

W2

H2

B

C

S × l

L1

T

T1

T2

N

G

K

d1

Grease Nipple

H

W

L

MSA 15E

24

47

56.3

16

4.2

38

30

M5 × 7

39.3

7

11

7

4.3

7

3.2

3.3

G-M4

MSA 20E

30

63

72.9

21.5

5

53

40

M6 × 10

51.3

7

10

10

5

12

5.8

3.3

G-M6

MSA 20LE

88.8

67.2

MSA 25E

36

70

81.6

23.5

6.5

57

45

M8 × 10

59

11

16

10

6

12

5.8

3.3

G-M6

MSA 25LE

100.6

78

MSA 30E

42

90

97

31

8

72

52

M10 × 10

71.4

11

18

10

7

12

6.8

3.3

G-M6

MSA 30LE

119.2

93.6

MSA 35E

48

100

111.2

33

9.5

82

62

M10 × 13

81

13

21

13

8

11.5

8.6

3.3

G-M6

MSA 35LE

136.6

106.4

MSA 45E

60

120

137.7

37.5

10

100

80

M12 × 15

102.5

13

25

15

10

13.5

10.6

3.3

G-PT 1/8

MSA 45LE

169.5

134.3

MSA 55E

70

140

161.5

43.5

13

116

95

M14 × 17

119.5

19

32

17

11

13.5

8.9

3.3

G-PT 1/8

MSA 55LE

199.5

157.5

MSA 65E

90

170

199

53.5

15

142

110

M16 × 23

149

21.5

37

23

19

13.5

8.9

3.3

G-PT 1/8

MSA 65LE

253

203

MSA 30 LE SS FCN PMI.jpg
RicoCNC also supplies a range of linear guide block and rails brands also bearings such as Rexroth, THK, HIWIN, PMI, INA, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.
MSA30LE flange slide block.jpg

If any need of CNC machine parts and tools, welcome to contact us.
