PMI MSA30E-N MSA30ESSFC Linear Guide Rail Slide Block Carriage 42x90x97mm

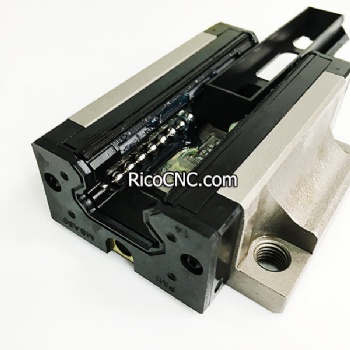

This linear guide slide block is Taiwan PMI MSA30E-N flanged linear bearing block, model MSA30ESSFCN.

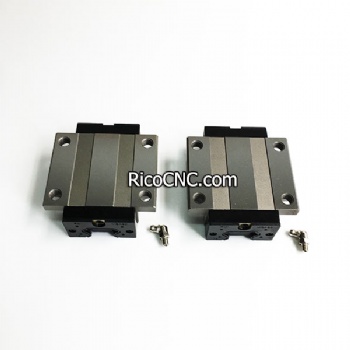

This type PMI MSA30E flange linear guideway carriage offers the installation either from top or bottom side of carriage.

MSA30E Linear Guide.jpg

Type: linear guideway block
Series: MSA
Model: MSA 30E
MRN: MSA30ESSFCN
PMI MSA30E Flange Linear Guideway Carriage.jpg

Size: 30               Block Type: Flange
Load Type: Heavy Load   Block Mounting Type: from Top or Bottom
Block Height: 42 mm     Block Width: 90 mm
Block Length: 97 mm     Thread Size: M10
Rail Width: 28 mm       Rail Height: 26 mm
Preload: FC             Accuracy Grade: N
Basic dynamic load rating: 39.2 kN
Basic static load rating: 57.8 kN
Weight: 1.10 kg

PMI MSA30E-N MSA30ESSFC N Linear Guide rail Slide Block Characteristics
     • High Rigidity, Four-way Equal Load    • Self Alignment Capability
     • Smooth Movement with Low Noise    • Interchangeability

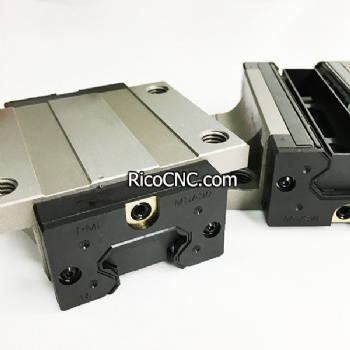

MSA30E (Flanged Linear Bearing Block) PMI.jpg


More models can be found in RicoCNC

Unit:mm


















Model No.

External   dimension

Carriage   dimension


H

W

L

W2

H2

B

C

S × l

L1

T

T1

T2

N

G

K

d1

Grease Nipple


H

W

L


MSA 15E

24

47

56.3

16

4.2

38

30

M5 × 7

39.3

7

11

7

4.3

7

3.2

3.3

G-M4


MSA 20E

30

63

72.9

21.5

5

53

40

M6 × 10

51.3

7

10

10

5

12

5.8

3.3

G-M6


MSA 20LE

88.8

67.2


MSA 25E

36

70

81.6

23.5

6.5

57

45

M8 × 10

59

11

16

10

6

12

5.8

3.3

G-M6


MSA 25LE

100.6

78


MSA 30E

42

90

97

31

8

72

52

M10 × 10

71.4

11

18

10

7

12

6.8

3.3

G-M6


MSA 30LE

119.2

93.6


MSA 35E

48

100

111.2

33

9.5

82

62

M10 × 13

81

13

21

13

8

11.5

8.6

3.3

G-M6


MSA 35LE

136.6

106.4


MSA 45E

60

120

137.7

37.5

10

100

80

M12 × 15

102.5

13

25

15

10

13.5

10.6

3.3

G-PT 1/8


MSA 45LE

169.5

134.3


MSA 55E

70

140

161.5

43.5

13

116

95

M14 × 17

119.5

19

32

17

11

13.5

8.9

3.3

G-PT 1/8


MSA 55LE

199.5

157.5


MSA 65E

90

170

199

53.5

15

142

110

M16 × 23

149

21.5

37

23

19

13.5

8.9

3.3

G-PT 1/8


MSA 65LE

253

203


PMI linear block bearing.jpg
