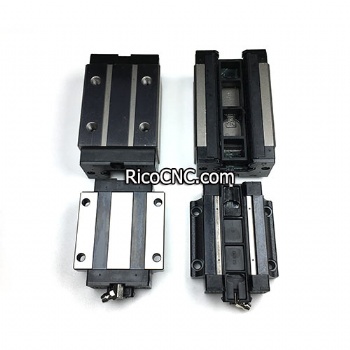

SBC linear guide block SBI 20FL.jpg

SBI 20FL SBC Flange Linear Guide Block 20x63x30mm


This is a SBC linear guide block, block size is 20mm, Standard block with flange, Side nipple, dustproof end seal and self-lubricant container end seal, model number is SBI 20FL.

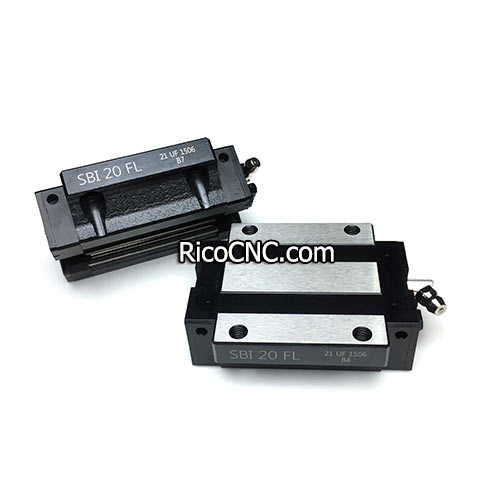

linear guide block SBI 20FL.jpg

SBI 20FL features:

Very Rigid Structure.

Larger Circulation Radius for Smooth Movement.

Longer Block Length for Higher Load Capacity.

Low Center.

Design:

flange

Size:

20

Height on rail (mm):

30

Height (mm):

25,4

Lenght (mm):

78,8

Width (mm):

63

Preload:

light preload

Precision class:

standard

Sealing:

standard

Material:

steel

Cage:

cageless, full complement

SBI 20 FL Linear Guide Block.jpg

Other SBI BLOCK Styles can be supplied as below:


Series Description

Low Profile Heavy Load

Low Profile Heavy Load

Block Series

FL

FLL

Block Size Options (mm)

15, 20, 25, 30, 35, 45, 55, 65

15, 20, 25, 30, 35, 45, 55, 65

Block Height Type

FLANGE

FLANGE

Block Length Type

Standard

LONG

Block Width Type

Wide

Wide

Preload Class

K1 Normal (standard)

K1 Normal (standard)

Preload Options

K2 Medium, K3 Heavy

K2 Medium, K3 Heavy

Stocking Delivery

Typical 2-3 days

Typical 2-3 days

Material

Carbon Steel

Carbon Steel


Low Profile Heavy Load

Low Profile Medium Load

FLS

FV

15, 20, 25, 30, 35

15, 20, 25

FLANGE

Compact FLANGE

SHORT

Compact Standard

Wide

Compact LONG

K1 Normal (standard)

K1 Normal (standard)

K2 Medium, K3 Heavy

K2 Medium, K3 Heavy

Typical 2-3 days

Typical 2-3 days

Carbon Steel

Carbon Steel

 SBI 20 FL Linear Guide Block 20x63x30mm.jpg

You also can find other brand/style linear block and rail here, such as SBC, INA, HIWIN, BOSCH REXROTH, THK, ABBA, PMI, etc.

SBI 20FL Linear Rail System.jpg

RicoCNC is a One-stop shop for you, please contact us freely.
