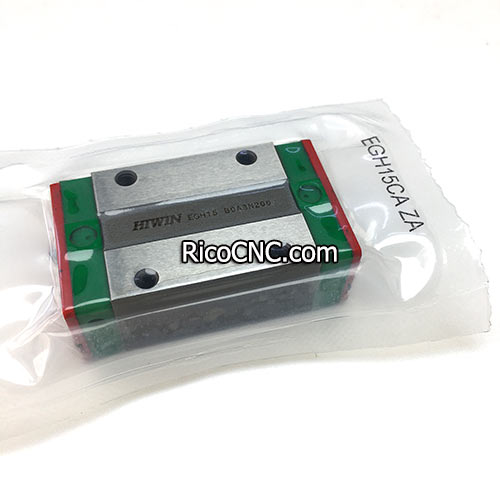

HIWIN Linear Bearing EGH15CA.jpg

Hiwin EGH15CA Linear Guideway Blocks Slide Bearing Carriage


This linear guide block EGH15CA is Hiwin EC series, it offers a low profile, high load capacity, and high rigidity.It also features an equal load rating in all four directions and self-aligning capability to absorb installation error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited. The retainer is designed to hold the balls in the block even when it is removed from the rail.

EGH15CA .jpg

EGH15CA Bearing dimension:


H

Total height

24

mm

H1


4,5

mm

N


9,5

mm

W

Block width

34

mm

B


26

mm

B1


4

mm

C


26

mm

L1


39,8

mm

L

Block length

56,8

mm

K1


10,15

mm

K2


3,5

mm

G


5,7

mm

M


M4


l


6

mm

T


6

mm

H2


5,5

mm

H3


6

mm

Linear Bearings EGH Serie.jpg

EGH15CA Block application in:

Machine centers、Machine tools、Precision machining machines、Heavy cutting machines、

Punching machines、Marble cutting machines、Automatic equipments、Grinding machines、High speed transfer equipments、Injection molding machines、Measuring equipments, etc.

linear bearing 24x34x56.8mm.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.

Linear Motion Guide ECH15CA.jpg

If any need of CNC machine parts, welcome to contact us.

HIWIN EG series Block.jpg

Interchangeable Type Block EGH15CA.jpg
