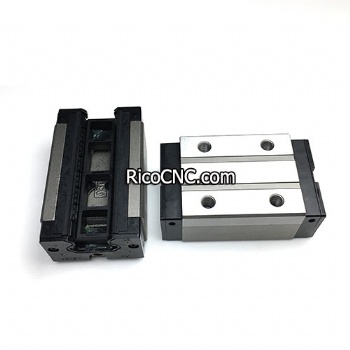

PMI MSA30SSSF0N/ MSA30SSSF0 Linear Guideway Block 37x60x97mm
This MSA30SSSF0 linear guideway block, also called MSA30SSSF0N, It is MSA Series Heavy Load Type, Full Ball,, Heavy Load Type.
Size: 30 Type, Square Type of sealing gasket, SS Preloading, Medium preloading, Accuracy class: N.
PMI Linear Guideway MSA30SSSF0N Specification:
Product Designations: | MSA30SSSF0N |
Old Designations: | MSA30SSSF0 |
Number of Rows: | Multi-Row |
Outside Diameter: | 60 mm |
Weight: | 0.86 KG |
Precision Rating: | N;H;P;SP;UP |
Bearing Material: | Chrome Steel |
Cage material: | Steel; Plastic |
Seal Material: | Rubber; Steel |
Structure: | Linear Guide Block |
Inside Diameter: | 37 mm |
Thickness: | 97 mm |
Demensions: | 37x60x97mm |
Radial Clearance Trade No.: | Normal |
Load Direction: | Heavy Load |
Cage Type: | Steel; Plastic |
Seals Type: | SS ; UU ; ZZ ; DD ; KK ;LL; RR |
Ball Material: | Chrome Steel |
More models can be found in RicoCNC
Model No. | External dimension | Carriage dimension | ||||||||||||
Height H | Width W | Length L | w2 | h2 | B | C | Sxl | L1 | T | N | G | K | a | |
MSA 15S | 28 | 34 | 56.3 | 9.5 | 4.2 | 26 | 26 | M4X5 | 39.3 | 7.2 | 8.3 | 7 | 3.2 | 3.3 |
MSA 20 S MSA 20 LS | 30 | 44 | 72.9 88.8 | 12 | 5 | 32 | 36 50 | M5x6 | 51.3 67.2 | 8 | 5 | 12 | 5.8 | 3.3 |
MSA 25S MSA 25 LS | 40 | 48 | 81.6 100.6 | 12.5 | 6.5 | 35 | 35 50 | M6X8 | 59 78 | 10 | 10 | 12 | 5.8 | 3.3 |
MSA 30 S MSA 30 LS | 45 | 60 | 97 119.2 | 16 | 8 | 40 | 40 60 | M8X10 | 71.4 93.6 | 11.7 | 10 | 12 | 6.8 | 3.3 |
MSA 35 S MSA 35 LS | 55 | 70 | 111.2 136.6 | 18 | 9.5 | 50 | 50 72 | M8X12 | 81 106.4 | 12.7 | 15 | 11.5 | 8.6 | 3.3 |
MSA 45 S MSA 45 LS | 70 | 86 | 137.7 169.5 | 20.5 | 10 | 60 | 60 80 | M10X17 | 102.5 134.3 | 16 | 20 | 13.5 | 10.6 | 3.3 |
MSA 55 S MSA 55 LS | 80 | 100 | 162.1 200.1 | 23.5 | 13 | 75 | 75 95 | M12X18 | 119.5 157.5 | 18 | 21 | 13.5 | 8.9 | 3.3 |
MSA 65 S MSA 65 LS | 90 | 126 | 199 253 | 31.5 | 15 | 76 | 70 120 | M16X20 | 149 203 | 23 | 19 | 13.5 | 8.9 | 33 |
Major application：
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
RicoCNC also supplies a range of linear guide block and rails brands also bearings such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.
If any need of CNC machine parts, welcome to contact us.
