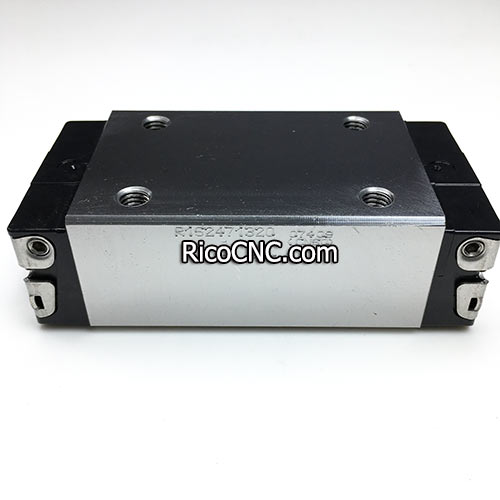

Carriages R162471320.jpg

R162471320 Bosch Rexroth Linear Guideway Runner Block


This is Ball Rail System Standard Ball Runner Blocks, steel, SLH, Type R162471320, also known as: 10130700, R162471320SLHC1H1, REXKWD-030, KWD-030REX, REXROTHKWD-030, KWD-030REXROTH.


R162471320 Specifications:

Area of application: For restricted space in transverse direction and high rigidity requirements

Higher rigidity than SLS

Significantly reduced frictional oscillations and low friction level, particularly under external load

Maximum precision

Patented entry zone increases the travel accuracy up to a factor of six


R162471320 technical specification:

Size

30

Design type

SLH - slim, long, high

Ball chain

Without ball chain

Material (profiled rail systems)

Carbon steel

Preload class

C1 moderate preload

Accuracy class

H - Highly accurate

Self-aligning for compensation of misalignments

Without self-alignment

Length of runner block [mm]

119.7

Width of runner block [mm]

60

Height of runner block with guide rail [mm]

45

Lubrication

Pre-lubricated

Dynamic load capacity C [N]

46000

Footnote dynamic load capacity C

The calculation of the dynamic load ratings and load moments is based on a stroke length of 100,000 m as per DIN ISO 14728-1. However, often only 50,000 m is actually stipulated. For comparison: Multiply the values C,Mt and ML from the table by 1.26.

Dynamic torsional moment load capacity Mt [Nm]

800

Dynamic longitudinal moment load capacity ML [Nm]

740

Static longitudinal moment load capacity ML0 [Nm]

1080

Static torsional moment load capacity Mt0 [Nm]

1160

Max. acceleration amax [m/s]

500

Seal

SS - Standard seal

Static load rating C0 [N]

66900

Permissible ambient temperature

-10 °C ... +80 °C

Friction coefficient

0,002 ... 0,003

Pitch T guide rail [mm]

80

Height of runner block

38.35

Weight [kg]

1.277

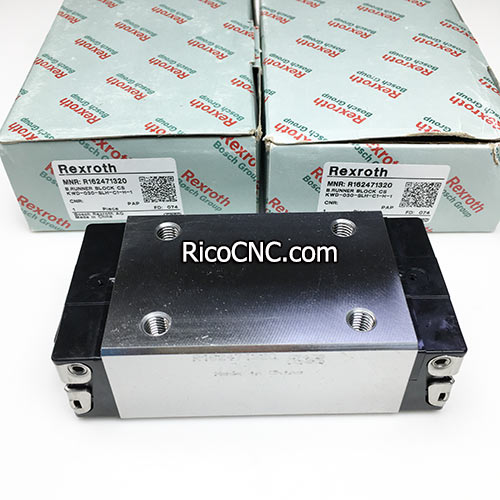

Linear Guideway Runner Block R162471320.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.

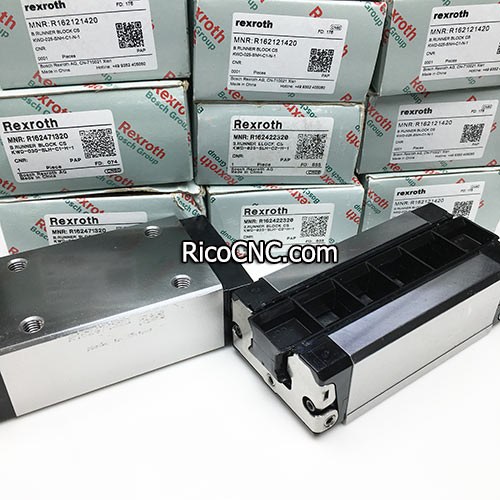

REXROTH R162471320.jpg

RicoCNC also can supply wide range of cnc spare parts, CNC cutter bits, and CNC machines.


Welcome to contact us if any inquires!

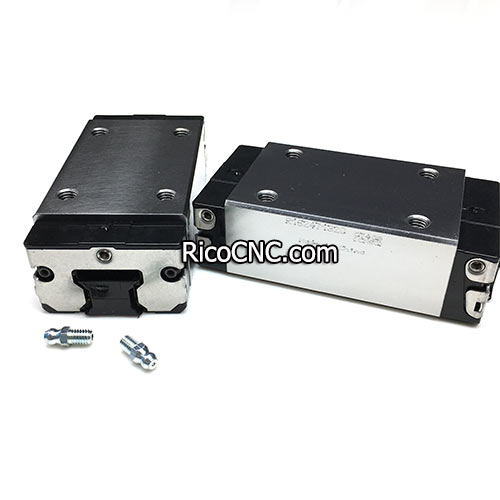

Ball runner block.jpg
