Original NEW THK HSR30LA HSR30LA1SSC1(GK) Linear Guide Block WHG50151

This liner block is THK HSR series linear motion guides with part number HSR30LA HSR30LA1SSC1(GK).

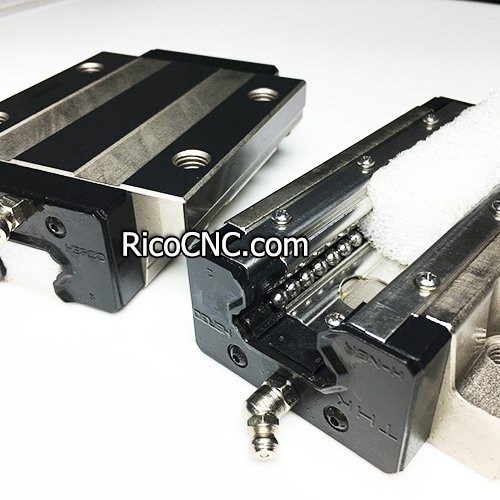

Linear bearing slide block HSR30LA1SSC1.jpg

The THK HSR Series of linear motion guides (also known as "LM guides") incorporate linear rolling motion for practical use. In this series, the rows of balls are placed at a 45-degree contact angle. The rated loads are uniform as they are applied to the linear motion block in radial, reverse radial, and lateral directions.

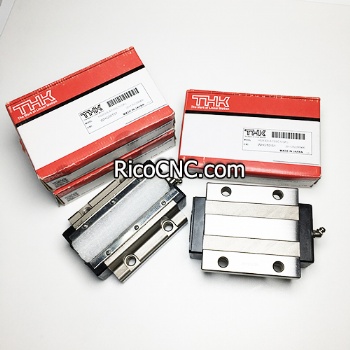

THK HSR30LA block.jpg

This linear rail block can be implemented in all orientations because of this feature. Because this is a full-ball type series, it is offered in a wide range of sizes to fit several applications, from large scale to small.
Linear bearing carriage HSR30LA1SSC1(GK).jpg

We can offer a range of Long A Type THK guide block carriage. Below is the list for HSKLA THK block

Model No.	Outer dimensions			Block dimensions			Rail dimensions		Basic load rating
	Outer dimensions			Block dimensions			Rail dimensions		Radial
	Height M	WidthW	Length L	B	C	S	Pitch F	d₁xd₂xh	Dynamic C	Static C₀
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN
HSR20LA	30	63	90	53	40	M6	60	6x9.5x8.5	23.9	35.8
HSR25LA	36	70	102.2	57	45	M8	60	7x11x9	35.2	51.6
HSR30LA	42	90	120.6	72	52	M10	80	9x14x12	48.9	70.2
HSR35LA	48	100	134.8	82	62	M10	80	9x14x12	65	91.7
HSR45LA	60	120	170.8	100	80	M12	105	14x20x17	100	135
HSR55LA	70	140	201.1	116	95	M14	120	16x23x20	148	194
HSR65LA	90	170	245.5	142	110	M16	150	18x26x22	249	323

THK linear slider blocks.jpg

These THK linear guide blocks are shipped from China.
Fast shipping and quick delivery.
Long A Type THK guide block.jpg

RicoCNC can supply a range of linear slider blocks and rails brands also bearings such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, NSK, NTN, FAG, etc. All are original motion products.
